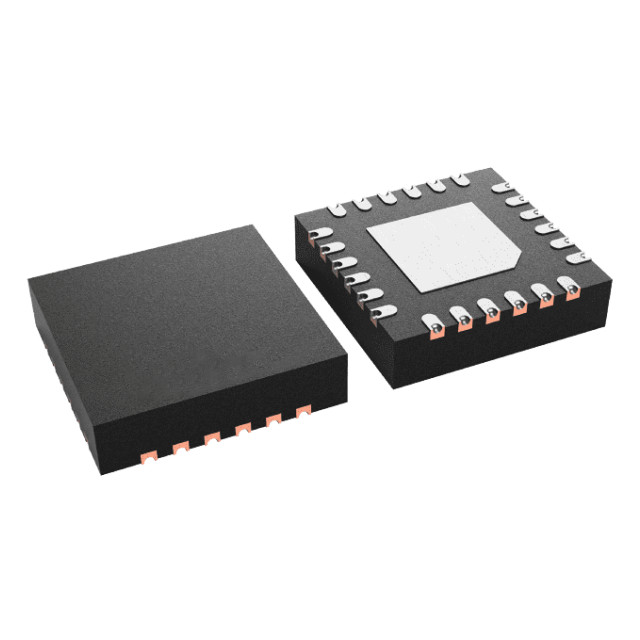

The M0L1227QRGERQ1 automotive microcontroller (MCU) belongs to the highly integrated ultra-low power 32-bit MSPM0 MCU series. It is based on the Arm Cortex-M0+ 32-bit core platform and can operate at a maximum frequency of 32MHz. The M0L1227QRGERQ1 device features a VBAT backup island, an optional segmented LCD controller (on the MSPM0L222x), network security mechanisms, and high-performance integrated analog, and offers outstanding low-power performance across the entire operating temperature range.

Technical Specification

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 20

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 9x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wings

Supplier device packaging: 24-VQFN (4x4)

In addition, the M0L1227QRGERQ1 also supports multiple communication interfaces including UART, SMBus/PMBus and SPI, etc., to meet a variety of communication requirements ‌. These features make the M0L1227QRGERQ1 an ideal control unit in automotive electronic systems, especially in scenarios that require high reliability and low power consumption.
