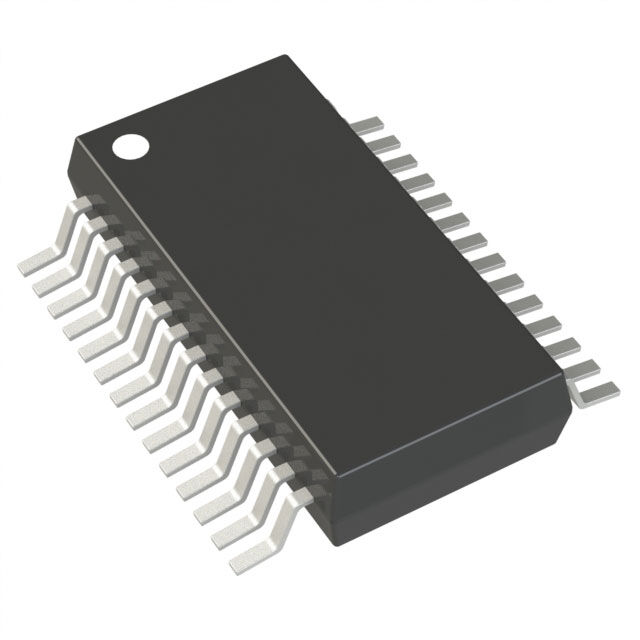

M0L1306QDGS28RQ1 is an automotive mixed-signal microcontroller produced by (TI), belonging to MSP highly integrated ultra-low power 32-bit MSPM0 MCU series. This MCU is based on the enhanced Arm® Cortex®-M0+ core platform and can operate at a maximum frequency of up to 32MHz. The M0L1306QDGS28RQ1 offers high-performance analog peripheral integration, supporting an operating temperature range of -40°C to 125°C and running at a power supply voltage of 1.62V to 3.6V.

The M0L1306QDGS28RQ1 mainly has the following key parameters:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 32MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, POR, PWM, TRNG, WDT

I/O number: 24

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 4K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 10x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: 28-VSSOP

Its typical applications mainly include:

Automotive body electronic devices and lighting

"Automobile gateway"

Steering wheel system

• Automobile motor control

• DC AC inverter

• Interior lighting

• Door handle module

• Kick the module with your foot

• Vehicle occupant inspection

• Seat comfort module
