Trade Name:Isolated ADCs
Brand:TI
Particular Year:25+

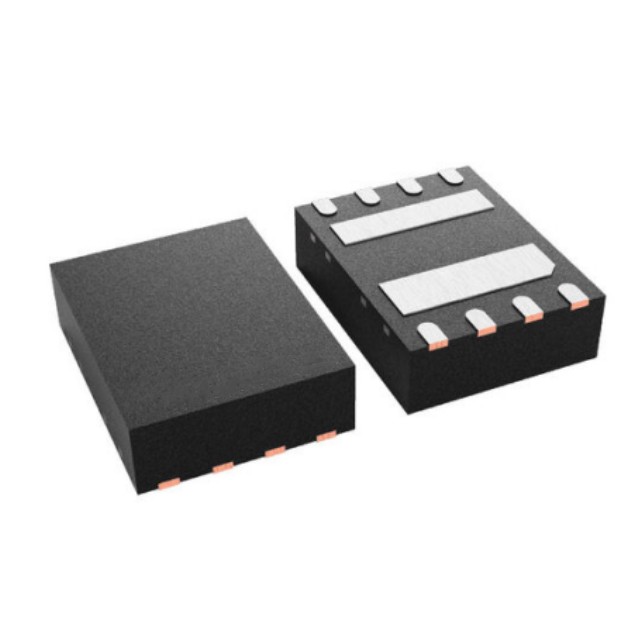

Package:VSON-8
Delivery Date:New and Original
Stock: 2000pcs
AMC0136DENR is a precision, galvanically isolated delta-sigma (ΔΣ) modulator with a ±1V, high impedance input and external clock. The high-impedance input is optimized for connection to high-impedance resistive dividers or other voltage signal sources with high output resistance.
The isolation barrier separates parts of the system that operate on different common-mode voltage levels. The isolation barrier supports a working voltage up to 200VRMS / 280VDC and transient overvoltages up to 570VRMS / 800VDC.
Feature Of AMC0136DENR
Linear input voltage range: ±1V
High input impedance: 1GΩ (typical)
Supply voltage range:
High-side (AVDD): 3.0V to 5.5V
Low-side (DVDD): 2.7V to 5.5V
Low DC errors:
Offset error: ±0.9mV (maximum)
Offset drift: 8.5µV/°C (maximum)
Gain error: ±0.25% (maximum)
Gain drift: ±35ppm/°C (maximum)
High CMTI: 150V/ns (minimum)
Missing high-side supply detection
Low EMI: Meets CISPR-11 and CISPR-25 standards
Functional Isolation:
200VRMS, 280VDC working voltage
570VRMS, 800VDC transient overvoltage (60s)
Safety-related certifications:
DIN EN IEC 60747-17 (VDE 0884-17)
UL1577
Fully specified over the extended industrial temperature range: –40°C to +125°C
Applications Of AMC0136DENR
48V motor drives
48V frequency inverters
Analog input modules
Power supplies
Model
Brand
Package
Quantity
Describe
TI
16-SOIC
3000
Automotive grade ±250mV enhanced isolated modulator with integrated DC/DC
