The AMC1304L25DWR is a high-precision Δ-Σ (ΔΣ) modulator that isolates the output and input circuits through a capacitive double isolation gate with high magnetic field immunity. According to DIN V VDE V 0884-10, UL1577 and CSA standards, this isolation barrier has been certified to provide enhanced isolation up to 7000 V peak. When used in conjunction with an isolated power supply, the AMC1304L25DWR can prevent noise currents from common-mode high-voltage lines from entering the local system ground, thereby interfering with or damaging low-voltage circuits.

Technical Specification

Type: Isolation Module

Number of channels: 1

Resolution (bit) : 16 b

Sampling rate (per second) : 78k

Data interface: LVDS - Serial

Power supply voltage source: Single power supply

Voltage - Power supply: 3V to 5.5V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

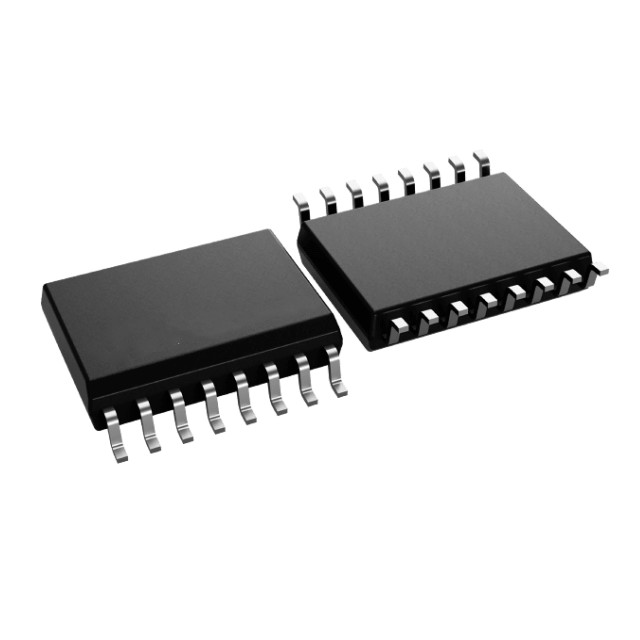

Package/Housing: 16-SOIC

Application field

The AMC1304L25DWR current measurement based on shunt resistors is used for the following applications:

-Industrial motor drive

-Photoelectric inverter

-Uninterruptible power supply

• Isolated voltage measurement
