AMC0386M10DFXR: Isolated ADC - Precision High Voltage AC Input, Enhanced Isolated Modulator with External Clock

Model: AMC0386M10DFXR

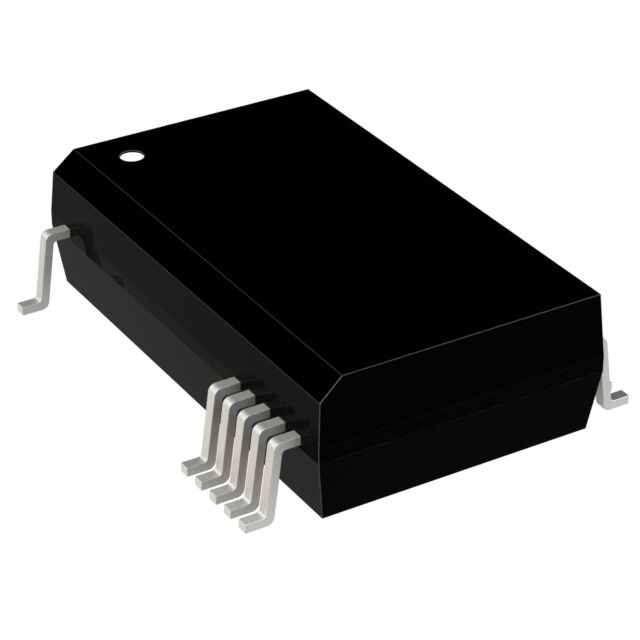

Package: SSOP-15

Type: Galvanic Isolated Precision Modulator

DESCRIPTION DETAILS:

The AMC0386M10DFXR is a galvanic-isolated, precision Δ-sigma modulator with high-voltage, high-impedance inputs and an external clock. The inputs are designed for direct connection to a high voltage signal source. An isolation barrier separates system devices operating at different common mode voltage levels. The barrier is extremely resistant to EMI and is certified to provide enhanced isolation up to 5kVRMS (60s).

AMC0386M10DFXR Product Features:

Integrated high-voltage resistor divider for direct AC or DC voltage sensing without external resistors

Better than 1% accuracy over the full temperature and lifetime range without system-level calibration

Supply voltage range:

High-side (AVDD): 3.0V to 5.5V

Low-side (DVDD): 2.7V to 5.5V

Low DC error:

Out-of-phase voltage error: ±0.9mV (max)

Temperature drift: ±7µV/°C (max)

Attenuation error: ±0.25% (max)

Attenuation drift: ±30ppm/°C (max)

High CMTI: 150V/ns (min)

High-side power supply miss detection
