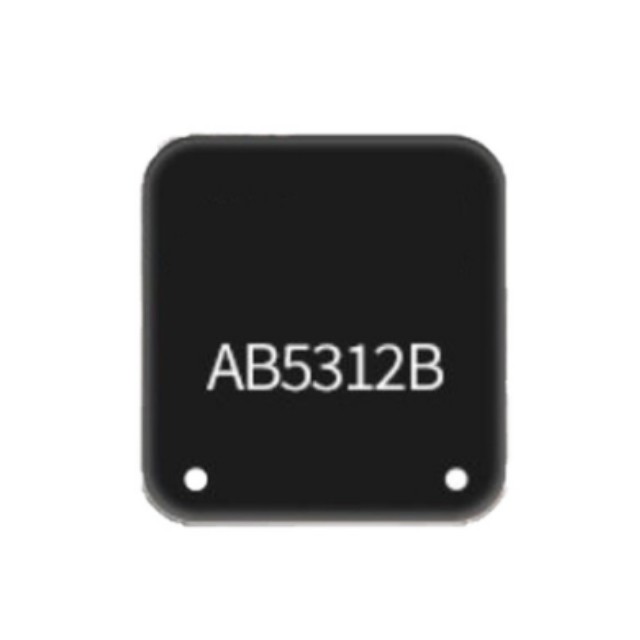

AB5312B is a high-performance Bluetooth audio SoC launched by Bluetrum, specifically designed for smart speaker applications. It adopts a RISC-V 32-bit high-performance CPU, supports DSP instruction sets, and operates at a frequency of up to 125MHz, enabling efficient processing of audio data. The chip complies with the Bluetooth 5.4 standard and features low power consumption and high sound quality, making it suitable for smart speakers and other devices.

Product Features

High-performance processor: Built-in RISC-V 32-bit high-performance CPU with DSP instruction set support, operating at up to 125MHz, enabling efficient processing of audio data.

Low-power design: Optimised power management extends the battery life of the device.

High-quality audio codec: Supports 16-bit mono DAC and 16-bit mono ADC, featuring a high-performance audio DAC (96dB SNR) and ADC (90dB SNR), providing high-quality audio output.

Flexible audio configuration: Supports multiple sampling rates (8, 11.025, 12, 16, 22.05, 32, 44.1, and 48kHz), along with a 2-channel analogue MUX and a single MIC amplifier input.

Bluetooth 5.4 support: Typical transmit power is +6dBm, with a receive sensitivity of -90.5dBm @ EDR, ensuring stable Bluetooth connectivity.

Rich peripheral interfaces: Features flexible GPIO pins, supporting GPIO wake-up or interrupt functionality, facilitating connectivity with other devices.

Compact package size: Utilises a QFN32 package, ideal for space-constrained applications.

Wide operating temperature range: Operating temperature range from -40°C to +85°C, storage temperature range from -65°C to +150°C, suitable for various environmental conditions.

Technical specifications

CPU: RISC-V 32-bit, 125MHz, supports DSP instruction set.

Memory: Built-in 4Mbits (512KB) Flash

Audio interface: 16-bit mono DAC and 16-bit mono ADC, supporting multiple sampling rates, high performance: audio DAC (96dB SNR), high-performance audio ADC (90dB SNR)

Operating voltage: 2.4V to 5V

Operating temperature: -40°C to +85°C

Package type: QFN32

Product applications

Bluetooth 5.3 Dual-Mode AI Smart Speaker; Bluetooth 5.3 Karaoke Box
