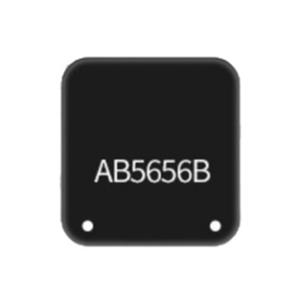

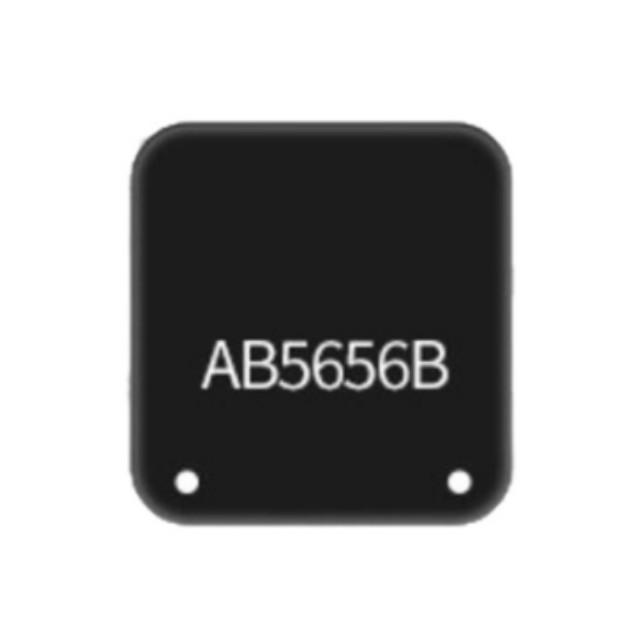

For picture reference, please see the specifications
< >

Commodity Model:AB5656B

Trade Name:Bluetooth Headset Chip

Brand:Bluetrum

Particular Year:25+

Package:QFN20

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Bluetrum
Model
AB5656B
Package
QFN20
Describe
Bluetooth 6.0 Surround Sound Headphones

Product Description

Bluetrum AB5656B is a high-performance Bluetooth 6.0 audio SoC in a QFN20 (3×3mm) package, suitable for TWS true wireless headphones, open-ear headphones (OWS) and surround sound Bluetooth audio devices. The chip is based on a 32-bit RISC-V processor, integrates a DSP instruction set, supports high-fidelity audio codecs, and low-power Bluetooth connectivity, making it widely applicable in both consumer and professional audio markets.


AB5656B Core Features

Bluetooth 6.0 dual-mode support

Compliant with the Bluetooth 6.0 protocol (some versions compatible with 5.4), providing more stable connections and lower power consumption.

TX maximum output power +9dBm, RX sensitivity -90.5dBm (baseline rate)/-94dBm (EDR), ensuring stable long-range transmission.

High-Performance Audio Processing

16-bit stereo DAC (102dB SNR) supports SBC/AAC high-definition audio codecs, delivering high-fidelity sound quality.

16-bit ADC (94dB SNR) supports ENC (environmental noise cancellation) and AEC (echo cancellation), optimising call clarity.

Low-power design

Utilises 40nm ULP process technology to optimise battery life, with standby current as low as microampere level.

Integrated PMU (Power Management Unit) with built-in charging management and buck/LDO, reducing the need for external circuits.

Rich storage resources

1Mbit internal flash memory (for firmware storage)

113KB RAM (running cache).

Package and operating temperature

QFN20 (3×3mm) package, compact size, easy to integrate into compact earphone designs.

Operating temperature range: -40°C to +85°C, suitable for various environmental requirements.


AB5656B Typical Applications

TWS true wireless headphones (supports dual-ear synchronous transmission)

Sports headphones (low power consumption + ENC noise reduction)

Business call headphones (high-definition voice + noise reduction)

Bluetooth speakers (surround sound output)

Associated Products

Model

Brand

Package

Quantity

Describe

BT8922H2

Bluetrum

QFN32

1000

Bluetooth 6.0 TWS Earbuds

BT8922C2

Bluetrum

QFN32

1000

Bluetooth 6.0 TWS Earbuds

BT8922A

Bluetrum

QFN32

1000

Bluetooth 6.0 TWS Earbuds

AB5656D

Bluetrum

QFN20

1000

Bluetooth 6.0 Surround Sound Headphones

AB5659T

Bluetrum

ESOP8

1000

Bluetooth 5.4 TWS Earphones

AB5656T

Bluetrum

QFN20

1000

Bluetooth 5.4 TWS Earphones

AB5756C

Bluetrum

QFN20

1000

Bluetooth 6.0 Open Earphones

AB5756E

Bluetrum

QFN20

1000

Bluetooth 6.0 TWS earphones

AB5759C

Bluetrum

ESOP8

1000

Bluetooth 6.0 TWS earphones

AB5756A

Bluetrum

QFN20

1000

Bluetooth 6.0 TWS earphones
