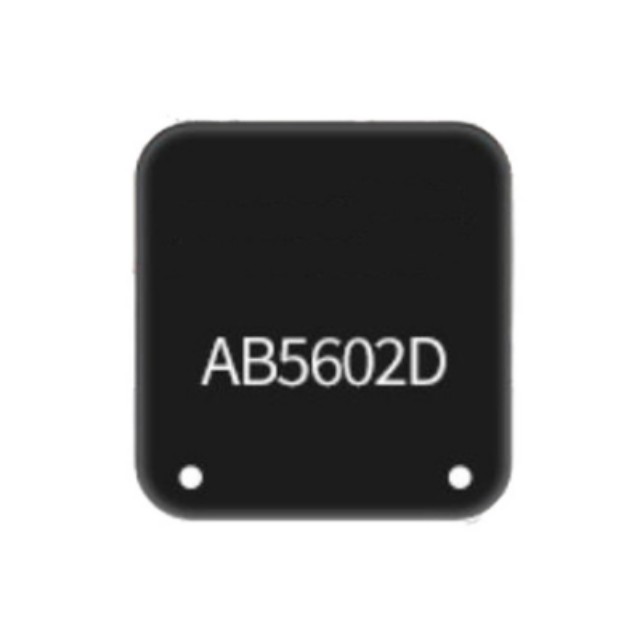

AB5602D is a Bluetooth 6.0 audio SoC chip designed by Bluetrum specifically for smart clock speakers, using a QFN32 package (4×4mm). The chip integrates Bluetooth audio, RTC real-time clock, digital amplifier and display driver functions, providing a highly integrated single-chip solution for clock speakers.

AB5602D Features

Clock Speaker Specific Functions

Built-in high-precision RTC (±2ppm)

Supports LCD/LED display driver interface

Alarm function supports Bluetooth music wake-up

Bluetooth 6.0 dual-mode

Supports BR/EDR + BLE 5.2

Transmission range >20 metres

Low-power mode current <10μA

Audio Processing

24-bit DSP audio processor

Supports SBC/AAC decoding

Signal-to-noise ratio ≥92dB

High-efficiency Class D amplifier

Output power 2×3W (4Ω)

Efficiency >85%

Ultra-low power consumption design

Clock mode power consumption <50μA

Supports lithium battery/USB power supply

AB5602D Parameters

Bluetooth version: 6.0 dual-mode

Package: QFN32 (4×4mm)

RTC Accuracy: ±2ppm

Display Interface: Supports LCD/LED

Output Power: 2×3W (4Ω)    W

Operating Voltage: 2.7V-5.5V    V

Standby Power Consumption: <50μA

AB5602D Product Applications

Clock Speaker
