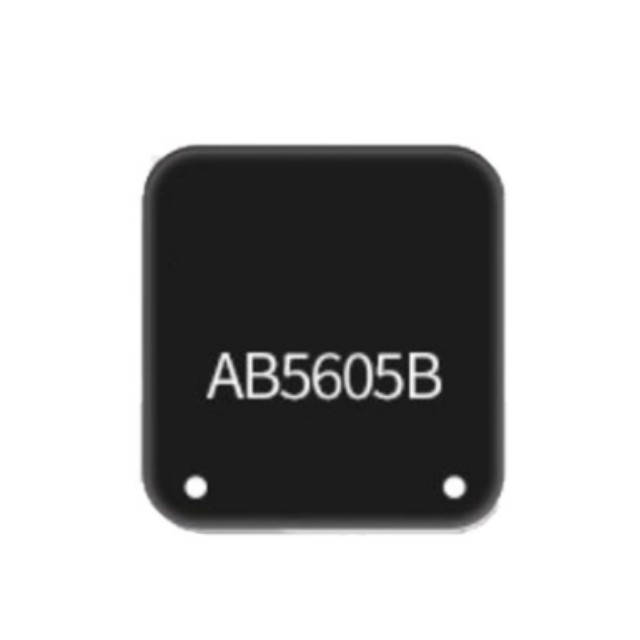

AB5605B is a high-performance Bluetooth 6.0 audio SoC chip launched by Bluetrum, using SSOP24 packaging, specially designed for portable Bluetooth speakers and smart audio devices. The chip integrates Bluetooth 6.0 dual mode (BR/EDR+BLE), DSP audio processor and Class D amplifier, providing a complete wireless audio solution that supports high-definition audio decoding and low-latency transmission.

Core Features

Bluetooth 6.0 dual-mode

Supports BR/EDR (traditional Bluetooth) + BLE (low-power Bluetooth)

Transmission range >20 metres (unobstructed environment)

Compatible with A2DP/AVRCP/HFP/HSP protocols

High-quality audio processing

Built-in 24-bit DSP audio processor

Supports SBC/AAC audio decoding

Signal-to-noise ratio ≥95dB, THD+N <0.1%

Efficient Class D amplifier

Output power 2×5W (4Ω load)

Efficiency >85%, extending battery life

Low-power design

Standby current <1mA

Supports low-power Bluetooth (BLE) mode

Rich interfaces

Supports USB/UART/I2S/PWM

Built-in 16MB Flash, capable of storing multiple EQ configurations

Technical specifications

Bluetooth version: 6.0 dual-mode (BR/EDR+BLE)

Audio decoding: SBC/AAC

Output power: 2×5W (4Ω)

Signal-to-noise ratio: ≥95 dB

Operating voltage: 3.3V to 5V

Operating temperature: -20°C to +85°C

Product applications

Stereo speakers
