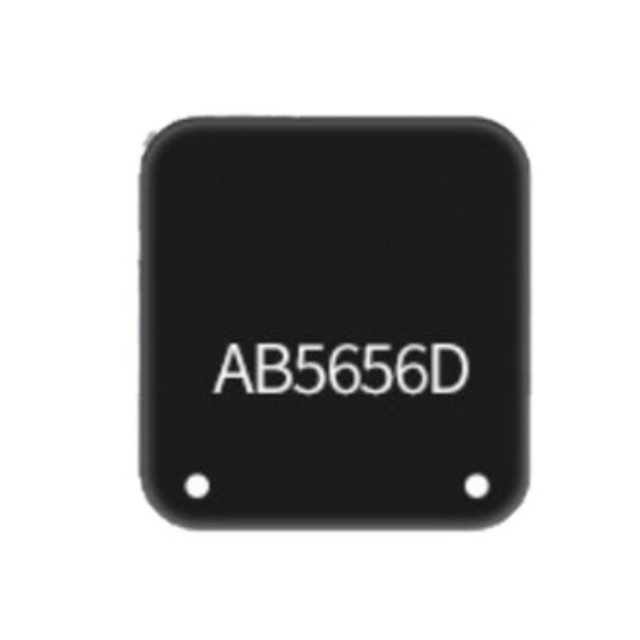

For picture reference, please see the specifications
< >

Commodity Model:AB5656D

Trade Name:Bluetooth Headset Chip

Brand:Bluetrum

Particular Year:25+

Package:QFN20

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Bluetrum
Model
AB5656D
Package
QFN20
Describe
Bluetooth 6.0 Surround Sound Headphones

Product Description

Bluetrum AB5656D is a high-performance chip suitable for Bluetooth 6.0 surround sound headphones.


AB5656D Product Features

High-performance processor: Uses a high-performance 32-bit RISC-V processor core with a main frequency of 125MHz and DSP instructions for efficient audio data processing.

Large Storage Capacity: Built-in 2Mbit flash memory and 113KB RAM to meet audio data storage and processing requirements.

Flexible IO Interfaces: Features flexible GPIO pins with programmable pull-up and pull-down resistors, enabling easy connection to peripheral devices, and supports GPIO wake-up or interrupt functionality.

Low-Power Design: Balances high performance with low-power consumption to extend headphone battery life.

High signal-to-noise ratio audio performance: Equipped with high-performance mono audio ADC (94dB SNR) and surround sound audio DAC (102dB SNR), paired with headphone amplifier output, ensuring clear and pure sound quality.


The technical parameters of AB5656D are as follows:

Bluetooth protocol: Supports Bluetooth 6.0 specifications

Operating frequency: Supports standard Bluetooth frequency bands

Transmit power: Maximum +9dBm

Receive sensitivity: -91.7dBm at basic rate, -94.2dBm at EDR.

Audio interface: Supports 16-bit stereo DAC and 16-bit mono ADC, supports flexible audio equalizer adjustment, and supports multiple sampling rates.

Package type: QFN20

Operating temperature range: -40°C to 85°C


The AB5656D is mainly used in TWS true wireless surround sound headphones, head-mounted headphones, Bluetooth speakers, and other audio devices to provide users with a high-quality audio experience.
