The TLE4946KHTSA1 is an integrated circuit Hall effect sensor, specifically designed for high-precision applications. It achieves precise magnetic switching points and high-temperature stability through the active compensation circuit on the chip and chopping technology.

The TLE4946KHTSA1 has the following key features:

Operate with a supply voltage ranging from 2.7V to 24V

Run through an unregulated power supply

The high sensitivity and high stability of the magnetic switch point

It has high impedance to mechanical stress

Through active error compensation

Reverse battery protection (-18 V)

Excellent temperature stability

The peak temperature can reach up to 195°C without any damage

Low jitter (typical value 1μs)

High ESD performance (±6 kV HBM)

Digital output signal

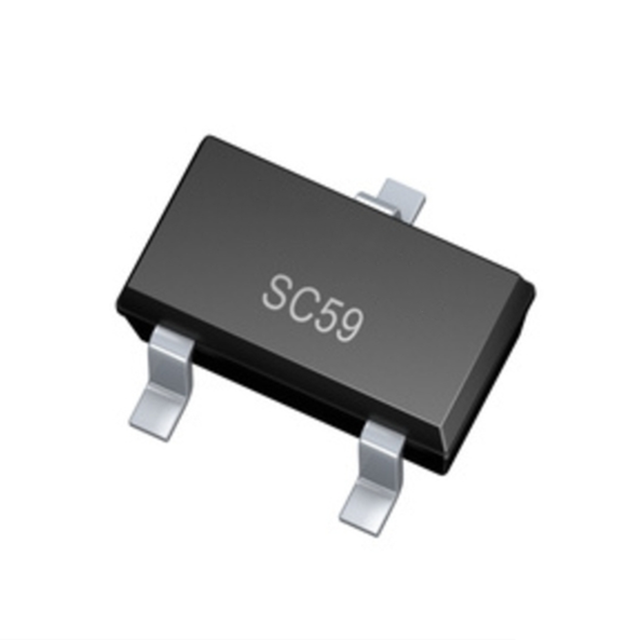

SMD package SC59 (compatible with SOT23)

Application field

The TLE4946KHTSA1 sensor is suitable for various application scenarios that require high-precision magnetic field detection, such as

Youdaoplaceholder0 Position detection ‌ : Used to detect the position or state of motion of an object.

Youdaoplaceholder0 Velocity measurement ‌ : Measuring the velocity of an object by detecting changes in its magnetic field.

Youdaoplaceholder0 Current detection ‌ : Used in some circuits to detect the presence and direction of current.
