The TLI4965-5M is a high-precision low-power unipolar Hall-effect switching sensor IC element ‌ for 5V applications with a high-precision switching threshold for an operating temperature of up to 125°C.

The target application of the TLI4965-5M Hall switch is all applications that require a high-precision Hall switch with an operating temperature range of -40°C to 125°C. TLI4965-5M is a unipolar switch, with a typical operating point BOP of 7.5mT and a hysteresis Bhys of 2.5mT. It is highly suitable for various position detection applications, such as gearshift levers, steering locks or brake lights.

Feature description

Working voltage: 3.0V to 5.5V

Low current consumption: 1.4 mA

Electrostatic discharge protection: 4 kV HBM

Active error Compensation (Chopping)

High stability of the magnetic threshold

Low jitter (typical value 0.35 μs)

Operating temperature range: -40°C to 125°C

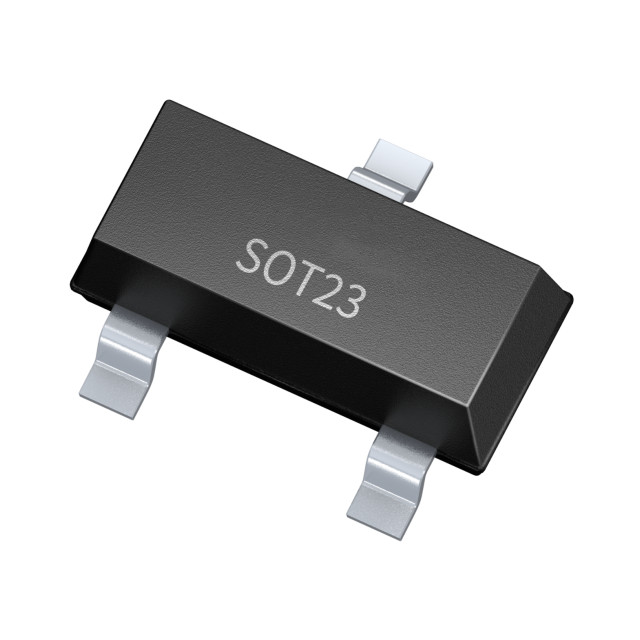

Small SMD package SOT23

JESD47 certification

Application field

The TLI4965-5M is suitable for various applications that require high-precision position detection, such as:

Gearshift lever ‌ : used to detect the position of the gearshift lever ‌.

Steering lock ‌ : Detect the status of the steering lock ‌.

Brake light ‌ : Controls the on/off of the brake light ‌.

Brushless DC motor ‌ : Rotor position detection ‌.
