The TLE4966-3G is an integrated circuit dual Hall effect sensor, specifically designed for high-precision applications that use rotating polar wheels. Precise magnetic switching points and high-temperature stability are achieved through on-chip active compensation circuits and chopper technology. The TLE4966-3G sensor provides speed output in Q2, and its state (high or low) corresponds to the magnetic field value. For positive magnetic fields (South Pole) exceeding the threshold BOP, the output is low level, while for negative magnetic fields (North Pole) below BRP, the output switches to high level. The output Q1 can be either a high level or a low level, depending on the rotation direction of the pole wheel. This direction information is calculated internally.

The TLE4966-3G has the following key features

The power supply voltage ranges from 2.7V to 24V

It is powered by an unregulated power supply

The high sensitivity and high stability of the magnetic switch point

High resistance to mechanical stress is achieved through active error compensation

Battery reverse protection (-18V)

Outstanding temperature stability

The peak temperature is as high as 195°C

Low jitter (typical value 1μs)

Digital output signal

Excellent matching of two Hall probes

The distance of the Hall plate is 1.45mm

Output signals for speed and direction

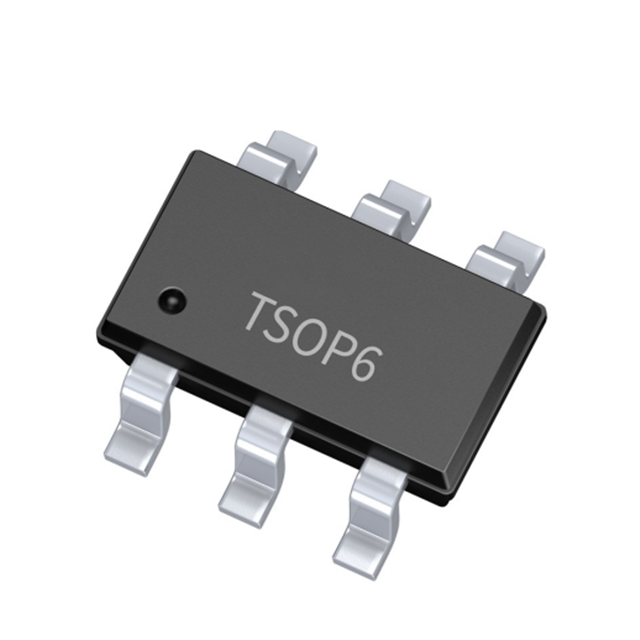

SMD package PG-TSOP6-6-9

Application field

The application fields of TLE4966-3G include:

Automobile ‌ : For motor control in automobiles, particularly 12V BL(DC) motor control.

Consumer electronics ‌ : For electronic devices that require high-precision magnetic field detection ‌.
