The TLE4966V-1G Hall switch is specially designed for detecting the rotation direction and speed of the rod wheel. The sensing direction is far from the surface of the sensor. Even when far from the Hall element, the direction can be accurately detected.

Performance parameters

Technology: Hall Effect

Polarization: Any kind

Sensing range: -4.1mT trip, 4.1mT release

Test conditions: 25°C

Voltage - Power supply: 3.5V to 32V

Current - Power Supply (maximum value) : -

Current - Output (maximum value) : 10mA

Output type: -

Feature: Temperature compensation

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

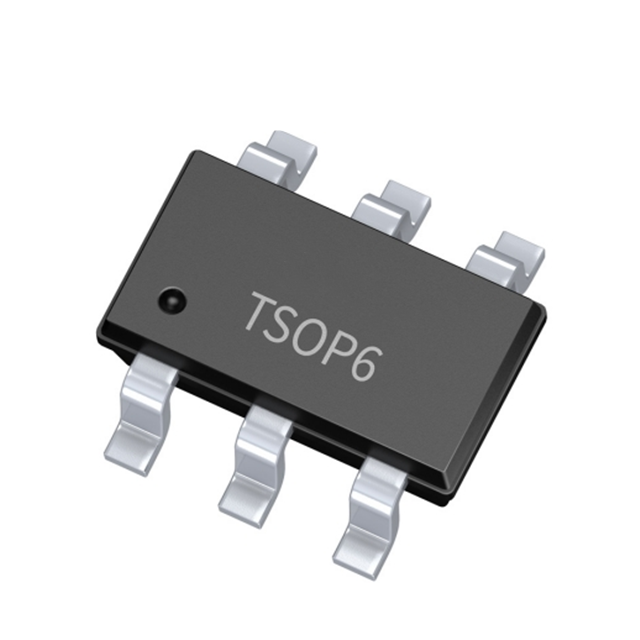

Supplier device packaging: PG-TSOP6-6-9

Application scenarios

TLE4966V-1G is suitable for a variety of high-precision applications including motor-driven positioning systems, power-off systems, sunshades and garage doors ‌. Due to its high precision and reliability, it is particularly suitable for applications that require precise control ‌.
