The TLE4966-2G is an integrated circuit dual Hall effect sensor, specifically designed for high-precision applications. Precise magnetic switching points and high-temperature stability are achieved through on-chip active compensation circuits and chopper technology. This sensor provides two independent velocity outputs in Q1 and Q2, and their states (high or low) correspond to the magnetic field values of the corresponding Hall elements H1 and H2.

Its characteristics mainly include

The power supply voltage ranges from 2.7V to 24V

It is powered by an unregulated power supply

The high sensitivity and high stability of the magnetic switch point

High resistance to mechanical stress is achieved through active error compensation

Battery reverse protection (-18V)

Outstanding temperature stability

The peak temperature is as high as 195°C

Low jitter (typical value 1μs)

Digital output signal

Excellent matching of two Hall probes

The distance of the Hall plate is 1.45mm

Two independent speed outputs

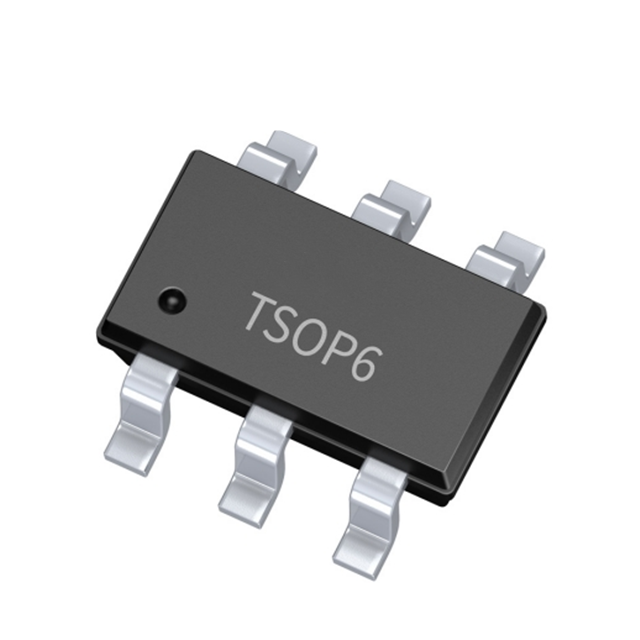

SMD package PG-TSOP6-6-9

The application of TLE4966-2G Hall Switch

Window regulator

Skylight

Automatic rear baffle

Automatic door

Sunshade curtain
