The TLE4968-1M is a Hall switch manufactured by Infineon that saves energy and creates sophisticated, compact systems. In addition, the current consumption of the TLE4968-1M product is only 1.6mA, which can reduce energy consumption by up to 50%.

Feature description

Working power supply voltage: 3.0V to 32V

Run through an unregulated power supply

Reverse polarity protection (-18 V)

The overvoltage capability is up to 42 V and no external resistor is required

Output overcurrent and over-temperature protection

Through active error compensation

High magnetic threshold stability

Low jitter (typical value 0.35μs)

High ESD performance

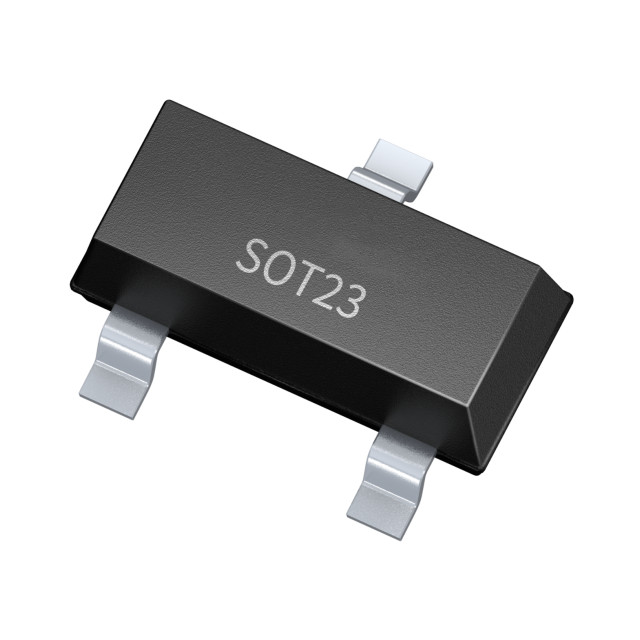

Small SMD package PG-SOT23-3-15 (TLE4968-1M)

Application field

BLDC rotor position measurement

Camshaft or gearbox application speed and position measurement

Basic information

Model: TLE4968-1M

Function: Bipolar switch

Technology: Hall Effect

Polarization: North Pole, South Pole

Sensing range: 2.25mT trip, -2.25mT release

Test conditions: 25°C

Voltage - Power supply: 3V to 32V

Current - Power supply (maximum value) : 2.5mA

Current - Output (maximum value) : 25mA

Output type: Open circuit drain

Feature: Temperature compensation

Operating temperature: -40°C to 170°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Supplier device packaging: PG-SOT23-3-15
