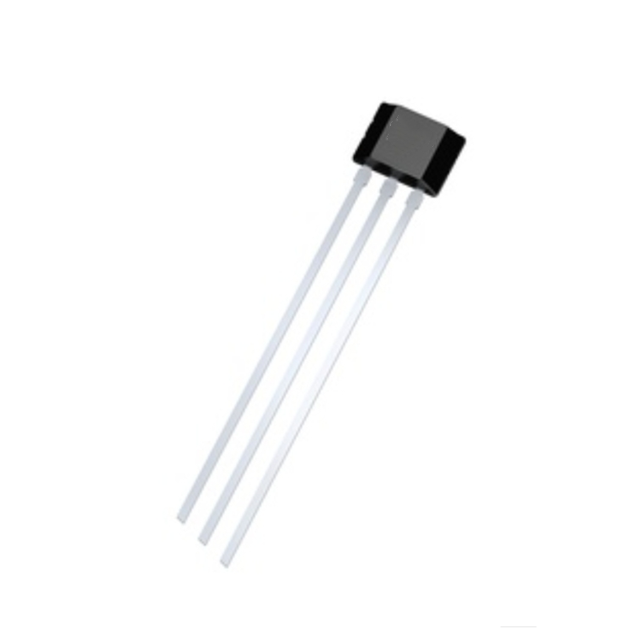

The TLE4968-1L is an integrated Hall effect switch specifically designed for high-precision applications. Its main features include:

Operating power supply voltage: 3.0V to 32V

• Powered by an unregulated power supply

Reverse polarity protection (-18 V)

It can achieve an overvoltage capacity of up to 42 V without the need for an external resistor

Output overcurrent and overheat protection

Active error compensation

High stability of the magnetic threshold

Low jitter (typical value is 0.35 μs)

• High ESD performance

• Lead packaging PG-SSO-3-2

Application field

The TLE4968-1L Hall switch is suitable for a variety of high-precision applications, including:

BLDC rotor position measurement ‌ : Used to measure the rotor position of BLDC motors ‌.

Youdaoplaceholder0 Camshaft or gearbox applications ‌ : for speed and position measurement ‌.

Performance parameters

Function: Bipolar switch

Technology: Hall Effect

Polarization: North Pole, South Pole

Sensing range: 2.25mT trip, -2.25mT release

Test conditions: 25°C

Voltage - Power supply: 3V to 32V

Current - Power supply (maximum value) : 2.5mA

Current - Output (maximum value) : 25mA

Output type: Open circuit drain

Feature: Temperature compensation

Operating temperature: -40°C to 170°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Through hole

Supplier device packaging: PG-SSO-3-2
