The TLE49604-4M-S2 is a XENSIV™ magnetic switch manufactured by Infineon that measures magnetic fields in the Z direction orthogonal to the PCB direction. This sensor has an open-drain output that can provide speed information. Furthermore, TLE49604-4M-S2 is developed in accordance with the ISO 26262 standard and has built-in diagnostic functions to support functional safety applications that comply with ASIL B requirements.

The TLE49604-4M-S2 has the following main specifications:

Function: Single-pole switch

Technology: Hall Effect

Polarization: North Pole, South Pole

Sensing range: 13.5mT trip, 5.4mT release

Test conditions: 25°C

Voltage - Power supply: 3V to 32V

Current - Power supply (maximum value) : 2.5mA

Current - Output (maximum value) : 10mA

Output type: Open circuit drain

Feature: Temperature compensation

Operating temperature: -40°C to 170°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

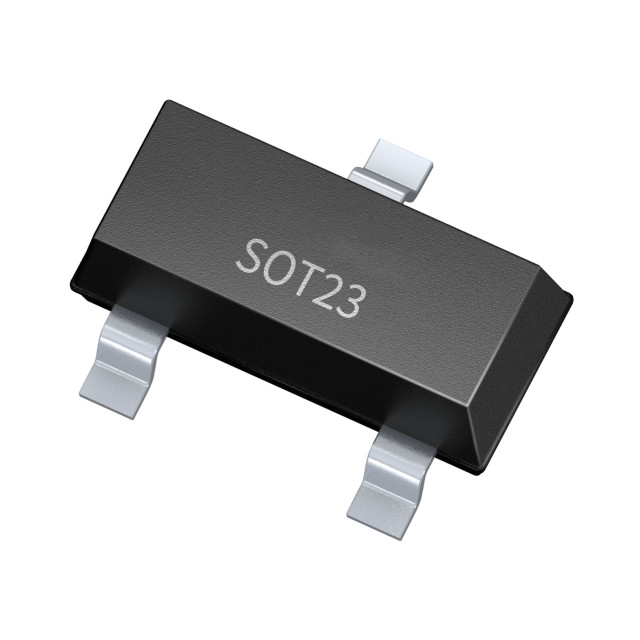

Supplier device packaging: PG-SOT23-3-15

Application field

The TLE49604-4M-S2 Hall switch is suitable for industrial applications that require high reliability and functional safety, mainly including:

Window regulator/sunroof

Power closure actuator

Seat positioner/seat belt pre-tensioner

BLDC commutation for automotive and industrial applications

Blinds and garage door opening devices
