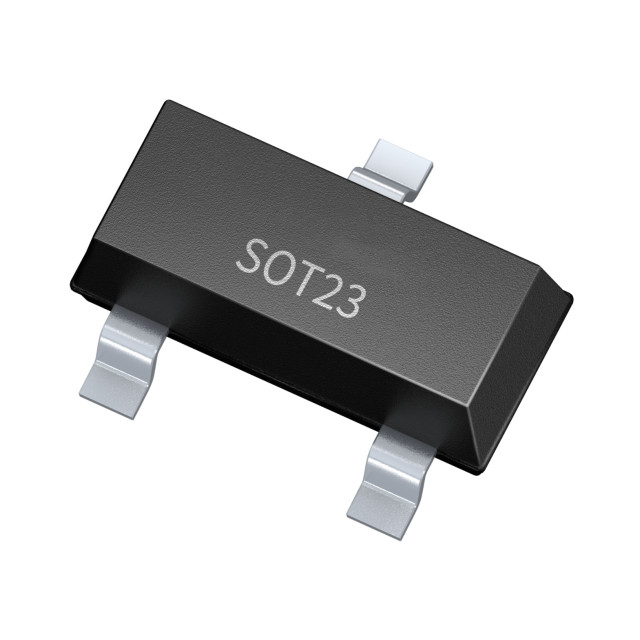

The TLE49604-2M-S2 is a XENSIV™ fourth-generation magnetic sensor, specifically designed for measuring the Z-direction magnetic field perpendicular to the printed circuit board, and features an open-drain output that can provide velocity information. The TLE49604-2M-S2 is strictly developed in accordance with the ISO 26262 standard. It integrates diagnostic functions and can support functional safety applications that meet the ASIL B-level requirements at the highest. The applications include window regulators, sunroof actuators, seat adjustment systems, etc.

Key characteristics

Devices conforming to the ASIL B standard

Magnetic field sensing is carried out in the direction orthogonal to the PCB using horizontal Hall elements

The ISO 26262 independent safety unit can meet the safety requirements up to ASIL B

Built-in diagnostic function with fault indication

It features high-precision magnetic sensitivity throughout the entire temperature and service life range

Overcurrent protection

Overheat protection

High thermal stress and mechanical stress tolerance performance is achieved through active error compensation (chopping technology)

Define the power-on state during the initial startup

Optimize for the pre-regulated power supply stage

Reverse battery protection (-18 V)

Load drop capability: up to 42V

±4kV ESD performance

These characteristics make the TLE49604-2M-S2 suitable for industrial applications that require high reliability and functional safety, such as in the fields of automobiles, industrial control and automation.
