Trade Name:IoT Chip
Brand:Bluetrum
Particular Year:25+
Package:QFN20
Delivery Date:New and Original
Stock: 1000pcs

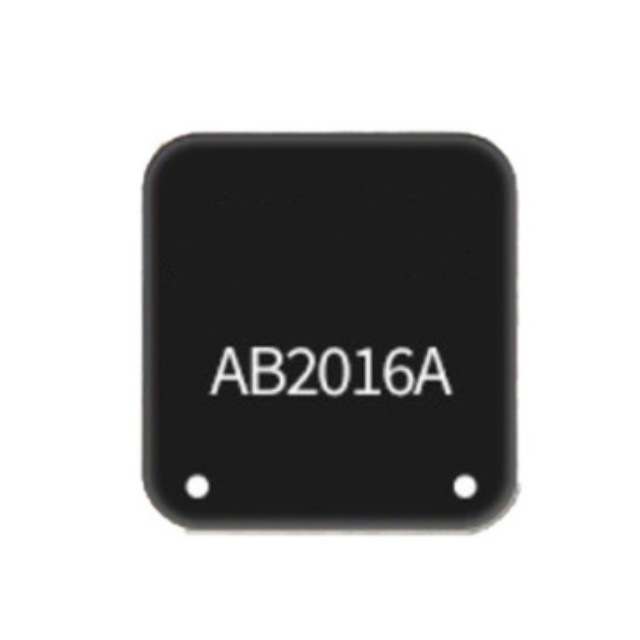

AB2016A is a high-performance AIoT chip launched by Bluetrum, designed to meet the low-power, high-integration, and high-performance requirements of IoT applications.
Core Performance
High-performance processor: Built-in RISC-V 32-bit high-performance CPU with DSP instruction set extension, operating at a maximum frequency of 120MHz, capable of efficiently processing complex algorithms and tasks.
Large Storage Capacity: Equipped with 128KB SRAM and 2Mbit internal flash memory, it can store extensive program code and data, meeting the storage requirements of complex applications.
Audio Performance
High-Precision Audio Codec: Supports flexible audio EQ adjustments to achieve diverse audio effects; features a high-performance mono audio ADC with a signal-to-noise ratio (SNR) of 90dB, enabling accurate capture of audio signals.
Multi-sampling rate support: Supports multiple sampling rates, including 8, 11.025, 12, 16, 22.05, 32, 44.1, and 48kHz, to meet the needs of different audio applications.
MIC input: Supports one MIC amplifier input, suitable for voice recognition, voice control, and other applications.
Bluetooth features
BLE Protocol Support: Supports BLE transmission rates of 1Mbps and ±250KHz offset, ensuring stable and reliable data transmission.
High Power Output and Sensitive Reception: BLE output power ranges from -27dBm to 12dBm, with reception sensitivity reaching -86dBm under typical conditions, ensuring stable long-range transmission and low error rates.
Other Features
Flexible GPIO Pins: Flexible GPIO pins with programmable pull-up and pull-down resistors, supporting GPIO wake-up or interrupt functionality, facilitating various peripheral control and interaction features.
Rich Interfaces: Supports three full-duplex UARTs, SPI, an infrared controller (IR Controller), an SD card host controller, and a full-speed USB 2.0 HOST/DEVICE controller, meeting diverse communication and control requirements.
Low-power design: Operating voltage range of 2.32V to 3.6V, with an optimised low-power architecture enabling low-power operation across various application scenarios, thereby extending device battery life.
Compact package size: Utilises a QFN20 package with dimensions of 3mm × 3mm.
Wide operating temperature range: Operating temperature range is -40°C to +85°C, and storage temperature range is -65°C to +150°C, ensuring stable operation under various environmental conditions.
AB2016A Application Areas
Smart Home and Lighting: In the smart lighting field, it supports Bluetooth remote control and voice control via a smartphone, while also compatible with traditional infrared remote control methods, suitable for various lighting devices such as desk lamps, ceiling lamps, and ambient lights.
Smart Voice Devices: Used in smart speakers, voice assistants, and other devices, providing high-quality audio processing and voice recognition functionality.
IoT Devices: In smart home, smart office, and smart healthcare applications, it serves as an IoT node, enabling interconnectivity and data transmission between devices.
