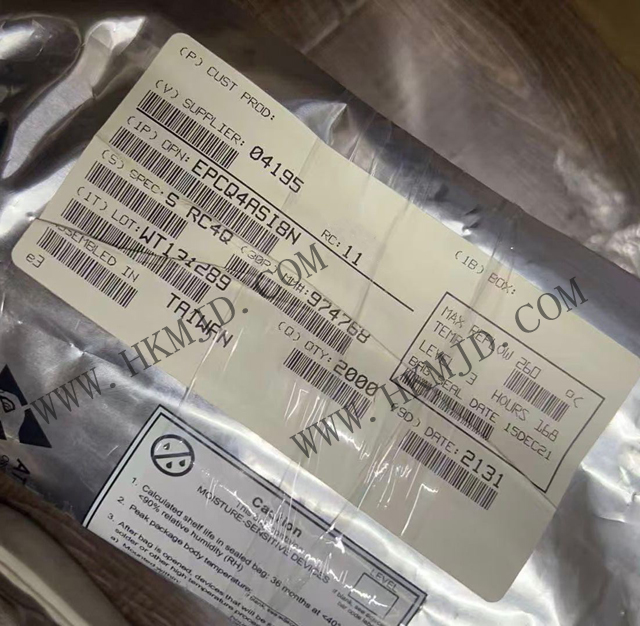

The Intel EPCQ4ASI8N is a 4MB capacity serial configuration memory belonging to the EPCQ-A series of products, primarily used for configuration storage in FPGAs (Field-Programmable Gate Arrays) and CPLDs (Complex Programmable Logic Devices). The device is housed in an 8-pin SOIC package (3.90mm wide) and supports in-system programming (ISP) functionality. It operates within a voltage range of 2.7V to 3.6V and is designed to function reliably within the industrial temperature range of -40°C to 85°C.

EPCQ4ASI8N Core Features

High-speed serial interface and storage performance:

Supports a four-wire SPI (Quad SPI) interface with a maximum clock frequency of up to 100MHz

4Mbit (512K × 8) storage capacity, meeting the configuration requirements of most FPGAs

Synchronous operating mode with high data transfer rates, enabling rapid loading of FPGA configuration data

Reliable storage characteristics:

Supports block programming and electrical erasure functionality, enhancing flash memory write efficiency

Data retention time of at least 20 years, with durability of 100,000 erase/write cycles

Utilises EEPROM technology, supporting electrical erasure and reprogramming

Low Power Consumption and High Integration Design:

Extremely low operating current, with a maximum standby current of only 0.00005A

8-pin SOIC small package, saving PCB space

Compliant with RoHS standards, environmentally friendly design

Technical Specifications

Manufacturer: Intel

Model: EPCQ4ASI8N

Package: 8-SOIC (3.90mm width)

Operating voltage: 2.7V to 3.6V

Temperature range: -40°C to 85°C

Storage capacity: 4Mbit (512K × 8)

Storage type: Configuration memory

Organization structure: 512K × 8

Interface type: Serial (Quad SPI)

Maximum Clock Frequency: 100MHz

Data Retention Time: ≥20 years

Erase/Write Cycles: 100,000 times

Programmable Type: In-system programmable

Humidity Sensitivity Level: MSL 3 (168 hours)

Compliant with RoHS standards

EPCQ4ASI8N Application Areas

FPGA/CPLD Configuration Memory

Industrial Control Systems

Consumer Electronics

Network Communication Equipment

Firmware Storage and Update for Communication Equipment
