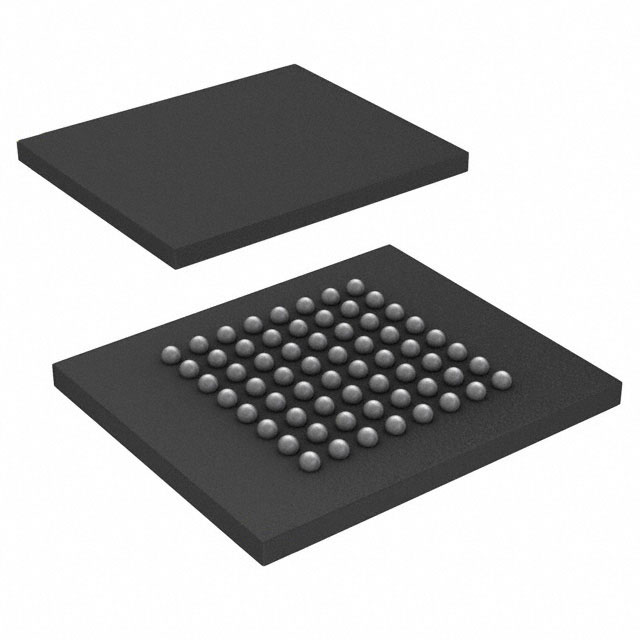

S70GL02GS12FHBV23 2-Gb MIRRORBIT™ flash memory device is fabricated on 65-nm MIRRORBIT™ process technology. This device offers a fast page access time of 25 ns with a corresponding random access time of 110 ns. It features a write buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard single byte/word programming algorithms. This makes the device an ideal product for today’s embedded applications that require higher density, better performance and lower power consumption.

Features Of S70GL02GS12FHBV23

CMOS 3.0 V core with Versatile I/O™

Two 1024 Megabit in a single 64-ball Fortified-BGA package

65-nm MIRRORBIT™ process technology

Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)

Versatile I/O feature

Wide I/O voltage (VIO): 1.65 V to VCC

×16 data bus

16-word/32-byte page read buffer

512-byte programming buffer

Programming in page multiples, up to a maximum of 512 bytes

Sector erase

Uniform 128-KB sectors

S70GL02GS: two thousand forty-eight sectors

Suspend and Resume commands for Program and Erase operations

Status Register, data polling, and Ready/Busy pin methods to determine device status

Advanced sector protection (ASP)

Volatile and non-volatile protection methods for each sector

Separate 1024-bye one time program (OTP) array with two lockable regions

Available in each device Support for common flash interface (CFI)
