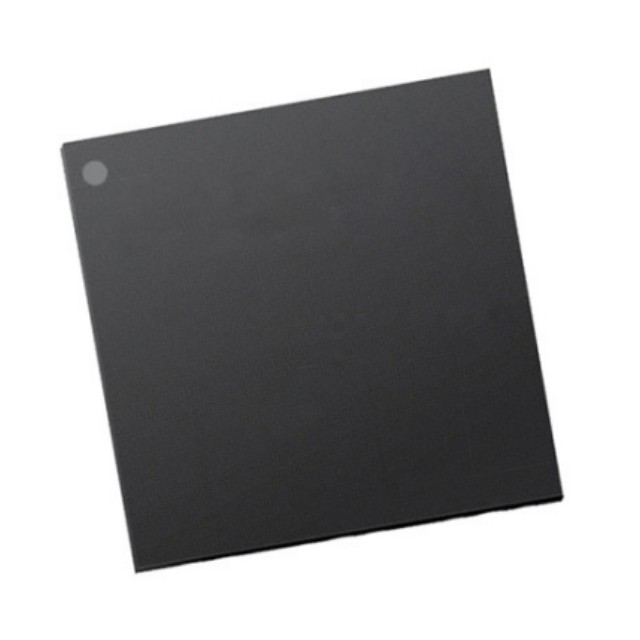

The RTL8353M is a 48-port 10/100M and 4-port 10/100/1000M managed Ethernet MAC switch controller. It supports 6 pairs of 2.5Gbps XSMII and 1 pair of QSGMII to connect to external 48-port fast Ethernet and 4-port Gigabit Ethernet PHY transceivers. The mode is 48 10/100BASE-T 4 combinations of 10/100/1000BASE-T/SFP.

The RTL8353M is embedded with a MIPS-34Kc CPU with a frequency of up to 700MHz. It supports 32-bit data bus, 64MB SPI flash memory (3-byte mode) or 64MB SPI flash memory (4-byte mode) and 256M bytes DDR3 SDRAMs(maximum). Furthermore, the RTL8353M also embeds 96KB of SRAM and can be used in time-sensitive applications.

Features

The switch capacity of RTL8353M is 17.6 Gbps

The RTL8353M supports 6 pairs of 2.5Gbps XSMII to 48 10/100M ports and 1 pair of 5Gbps QSGMII to 4 10/100/100M Ethernet PHyS

The RTL8353M supports 48 10/100BASE-T 4 combinations of 10/100/1000BASE-T/SFP

The RTL8353M supports flexible interfaces

The internal MIPS-34Kc has a maximum of 32MB SPI flash memory (3-byte mode) or a maximum of 64M bytes SPI flash memory (4-byte mode) and a maximum of 256MB DDR3 SDRAM

Support flash-only solutions

Single/dual/quadruple SPI flash memory

96KB SP-SRAM

Embedded MIPS-34Kc with MMU

Typical applications

48 10/100BASE-T + 4 combinations 10/100/1000BASE-T/SFP
