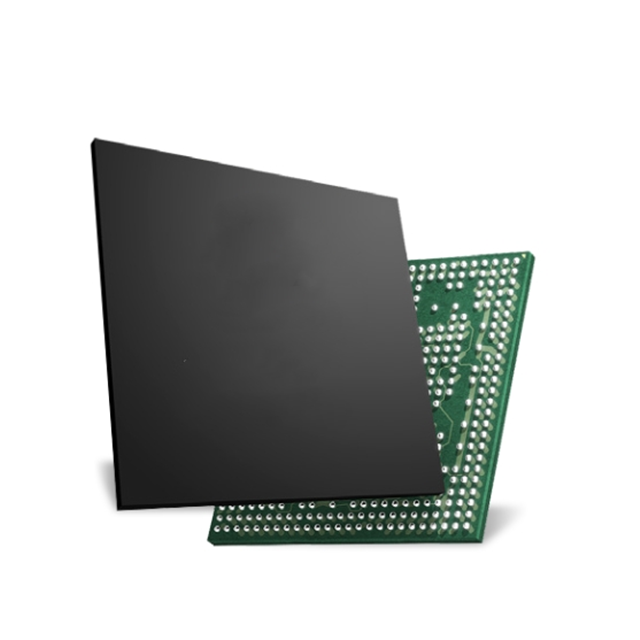

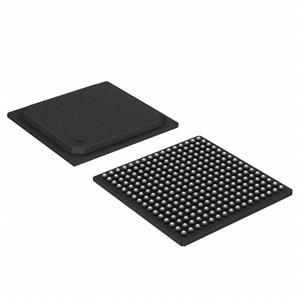

BCM53134OKFBG is Broadcom's lowest-power integrated Ethernet switch, suitable for next-generation home gateways, SOHO/SMB and wireless router applications. Built on the industry-leading 28nm RoboSwitch™ architecture, the BCM53134OKFBG enables customers to significantly reduce the power consumption of their existing designs while offering higher performance to meet the growing bandwidth demands in both home and SOHO/SMB environments.

Core function

The 4xGPHY integrates 1xRGMII and 1xRGMII/SGMII + (1G / 2.5Gb/s) interfaces

Economically efficient, ultra-low power consumption (supporting green energy-saving mode), intelligent management of gigabit switches, integrated on-chip 8051

Microcontroller

Advanced Bridging

4K MAC table (also known as FDB, ARL or learning table)

802.1q vlan bridging

Port-based Vlan filtering

802.1ad (QinQ)

Up to 8 spanning trees

128 multicast groups

Advanced QoS function

Each port has 8 queues (2 dedicated to time-sensitive applications)

IEEE 802.1p, MAC port, TOS and DiffServ service level mapping

SP, WRR, WDRR scheduling and three types

A combination of RED/WRED and tail congestion avoidance mechanisms

Rate control protects agai from the flood of unknown unicast/broadcast traffic

Advanced Compact Field Processor (CFP

128 CFP Rule

L1 to L4 filtering (physical port to TCP/UDP port)

Advanced dual-speed three-color metering (compliant with RFC2698, RFC 4115 and MEF 10.2)

Broadsync™ is used for HD supported by IEEE 802.1AS

Two dedicated queues for time-sensitive traffic

The timestamp entry and exit are CPU-generated frames

Time slot transmission receiving Broadsync traffic.

The BCM53134OKFBG supports advanced features provided by top service providers for home and SOHO/SMB gateways, especially in VLAN bridging, QoS and access list classification. For instance, in the QoS domain, the BCM53134OKFBG supports six selectable service classes for each port, along with two additional time-sensitive classes. It supports CoS mapping based on port, IEEE 802.1P, TOS and DSCP. It supports SP, WRR and WDRR scheduling (as well as the combination of the three), and it supports inlet and outlet rate control (also known as metering and shaping).

Target application

Broadband access equipment
