The LT5400BCMS8E-3 is a network of four matching resistors, which has excellent matching specification indicators throughout the entire temperature range. When configuring the LT5400 in a differential amplifier, matching is also specified. This enhanced matching specification ensures that the performance of CMRR is improved by more than twice compared to when using independent matching resistors.

All four resistors can be used independently and bias applied, making the LT5400BCMS8E-3 a convenient and universal choice for any application that benefits from matching resistors.

Basic parameters

Model: LT5400BCMS8E-3

Type: Resistor network

Circuit type: Isolation

Resistance (ohms) : 10k, 100k

Tolerance: ±15%

Resistor number: 4

Resistor matching rate: ±0.025%

Resistor matching rate drift: ±0.2ppm/°C

Number of pins: 8

Power per component: 800mW

Temperature coefficient: ±25ppm/°C

Operating temperature: 0°C to 70°C

Application: Voltage Divider (TCR matching)

Installation type: Surface mount type

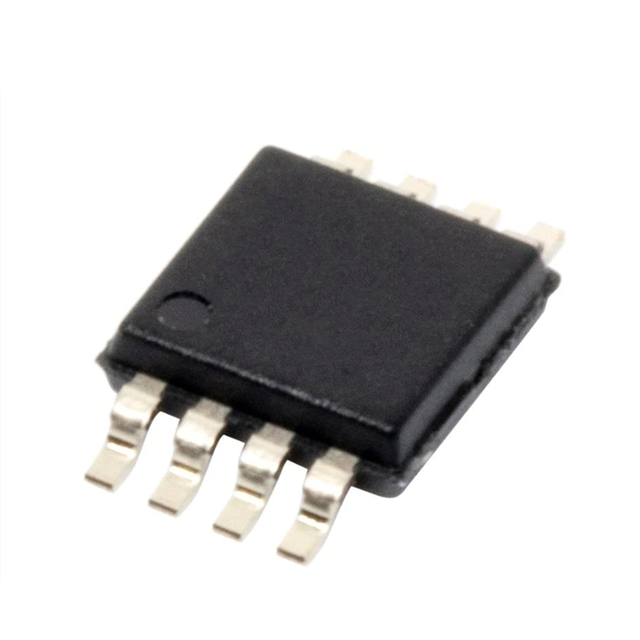

Packaging/Shell: 8-MSOP-EP

Size/Dimension: 3.00mm x 3.00mm

Height - Installation (maximum) : 1.10mm

Application scenarios

The LT5400BCMS8E-3 is suitable for various application scenarios that require high-precision matching resistors, including but not limited to:

Differential amplifier

Reference frequency divider

Precise addition/subtraction operations
