The LT5401IMSE is an ultra-precise matching resistor network that has been optimized for use with fully differential and differential amplifiers, offering perfect matching specifications across the entire temperature range. The LT5401IMSE contains two strings of matching resistors, each string providing three tap points. The resulting matching rate is highly suitable for precisely setting the gain or attenuation of a differential amplifier.

Its main features include:

It has been optimized for use in conjunction with fully differential and differential amplifiers

Perfect match

Resistance ratio matching ±0.003% (maximum value)

96.5dB CMRR (Minimum value)

Gain error ±25ppm (maximum value)

Matching temperature drift ±0.5ppm/°C (maximum value)

Working voltage ±35V (±36V absolute maximum value)

The absolute resistance value temperature drift is 8ppm/°C

Long-term stability: <8ppm (6500 hours)

Input with ESD protection

Operating temperature: -55 °C to 150°C

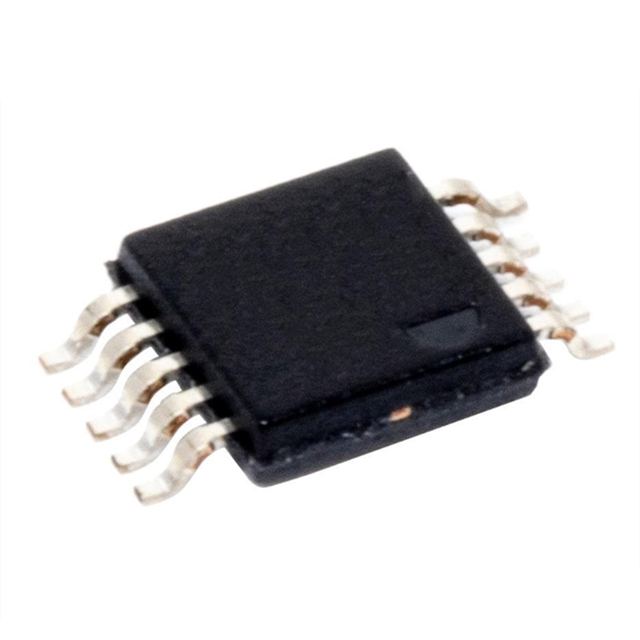

10-pin MSOP package

Application scenarios

The LT5401IMSE is suitable for a variety of application scenarios, including:

Fully differential amplifier

Differential amplifier

Reference frequency divider

Precise addition/subtraction
