The LTC2141CUP-12 is a 12-bit, 40Msps, low-power dual-channel ADC (analog to digital converter) designed for high-frequency, wide-dynamic range signal digital processing ‌. The LTC2141CUP-12 is highly suitable for demanding communication applications and features excellent AC performance, including a signal-to-noise ratio (SNR) of 70.8dB and a parasitic dynamic range (SFDR) of 89dB. With ultra-low jitter of 0.08psRMS, it achieves excellent noise performance and undersampling of frequency ‌. It has the following main characteristics:

Two-channel simultaneous sampling ADC

70.8dB SNR

89dB SFDR

Low power: 92mW / 65mW / 48mW (total value)

46mW / 33mW / 24mW (per channel)

Single 1.8V power supply

CMOS, DDR CMOS, or DDR LVDS output

Optional input range: 1VP-P to 2VP-P

750MHz full-power bandwidth sampling and holding (S/H)

Optional random function generator for data output

Optional clock duty cycle stabilizer

Sleep and nap patterns

Serial SPI port for configuration

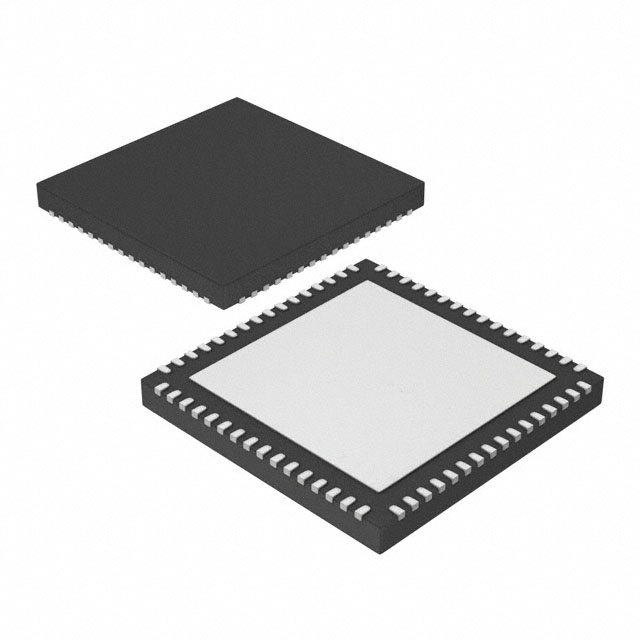

64-pin (9mm x 9mm) QFN package

Application scenarios

The LTC2141CUP-12 is widely used in various application scenarios that require high-precision and high-speed signal processing, including:

Communication

Software-defined radio

Portable medical imaging

Multi-channel data acquisition

Non-destructive testing
