The AD4681BCPZ device is a 16-bit, pin-compatible dual-synchronous sampling, high-speed, low-power, successive approximation register (SAR) and analog-to-digital converter (ADC). It operates on a power supply voltage ranging from 3.0V to 3.6V and has a throughput of 500 kSPS. The analog input type is differential, which can accept a wide common-mode input voltage range and perform sampling and conversion at the CS descent terminal.

Technical Specification

The main specifications of AD4681BCPZ are as follows:

Number of digits: 16

Sampling rate (per second) : 500k

Input number: 2

Input type: Differential

Data interface: Serial

Configuration: ADC

Ratio -S /H:ADC: 0:2

Number of A/D converters: 2

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 3V to 3.6V

Voltage - Power supply, digital: 1.65V to 3.6V

Feature: Synchronous sampling

Operating temperature: -40°C to 125°C

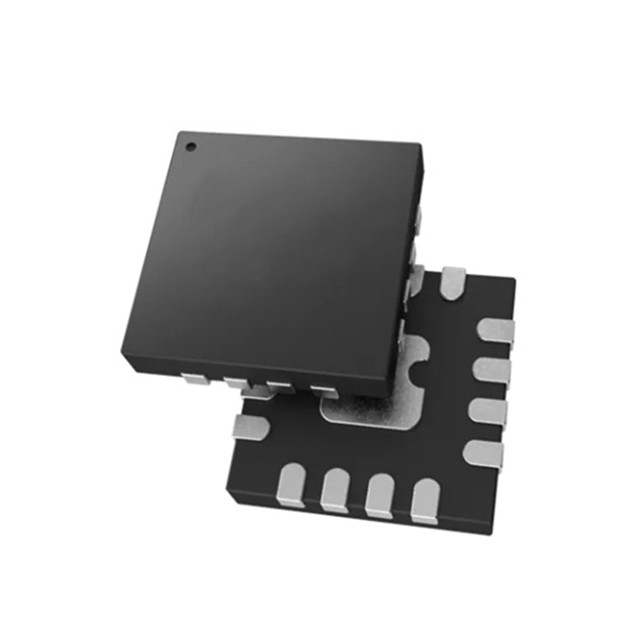

Package/Shell: 16-LFCSP

Installation type: Surface mount type

Application scenarios

The AD4681BCPZ is suitable for a variety of application scenarios, including

Motor control position feedback

Motor control current detection

Sonar

Power supply quality

Data acquisition system

Applications of Erbium-doped Fiber amplifiers (EDFA)

In-phase (I) and orthogonal (Q) demodulation
