The AD4056BCBZ is a multifunctional, 12-bit, successive approximation register (SAR) analog to digital converter (ADC) that enables a low-power, high-density data acquisition solution without sacrificing accuracy. This ADC achieves a unique balance between performance and efficiency, and features innovative functions that can seamlessly switch between high-resolution and low-power modes according to the immediate needs of the system. Youdaoplaceholder0 is ideal for battery-powered compact data acquisition and edge detection applications.

Main characteristics

Small size, high performance

INL: ±0.1 LSB (maximum value)

SNR: 73.8 dB (when VREF = 3.3 V)

Each conversion is 1.35 nJ

In the sampling mode, it is 1.35mW/0.68mW at 1MSPS/500kSPS

In the autonomous mode, it is 370 μW/112 μW at 1 MSPS/300 kSPS

4.1 μW standby power

Multi-functional signal conditioning integration

The Easy Drive feature supports a small and low-power AFE design

Compatible with differential and single-ended signal chains

Wide common-mode input range

Minimize the activities and power consumption of digital hosts to the greatest extent

Perform autonomous sampling using window comparators and interrupt generation

Average filters with continuous and burst sampling options

The power supply cycle synchronization of the supporting equipment

The 4-wire SPI is compatible with 1.8V to 3.3V logic

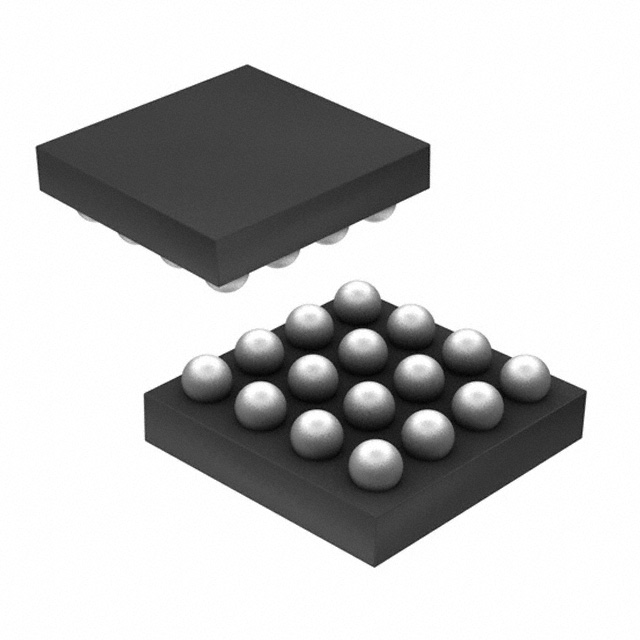

Youdaoplaceholder0 is in a 1.67mm × 1.97mm WLCSP package

Wide operating temperature range: -40 °C to 125°C

In addition, AD4056BCBZ is applicable to a variety of scenarios, including:

Battery-powered data acquisition

Vital sign monitoring

Biological and chemical analysis

Geological and seismic sensing

Motion and robotics technology
