The AD4195-4BCPZ is a low-noise, fully integrated analog front-end, suitable for high-precision measurement applications. The AD4195-4BCPZ features a low-noise, 24-bit Σ-Δ analog-to-digital converter (ADC) that can be configured with four differential inputs or eight single-ended or pseudo-differential inputs. The on-chip low-noise gain stage ensures that small-amplitude signals can be directly transmitted to the ADC. It has the following characteristics and main specifications:

Input reference noise: 10nV at 3.8SPS, gain = 128

Cross-point multiplexing analog input

4 differential /8 pseudo-differential inputs

Ultra-low noise integrated PGA with a gain ranging from 0.5 to 128

Output data rate: 3.8SPS to 62.5kSPS

Flexible digital filter

Low-latency sinc filter

Simultaneously suppress 50Hz/60Hz

For band gap reference, the typical drift value is 5ppm/°C

Internal oscillator

Analog power supply: 4.75V to 5.25V or ±2.5V

Digital power supply: 1.7V to 5.25V

A matching programmable excitation current source

Low-side power switch

On-chip bias voltage generator

Internal temperature sensor

Four universal inputs/outputs

Internal and system calibration

Sensor burnout detection

Diagnostic function

Four-channel configuration

Flexible automatic channel timing controller

3-wire or 4-wire serial interface (Schmitt trigger on SCLK)

Compatible with SPI, QSPI, MICROWIRE and DSP

Time-division multiplexing compatible interface for data streams

Performance temperature range: -40 °C to +105°C

Functional temperature range: -40 °C to +125°C

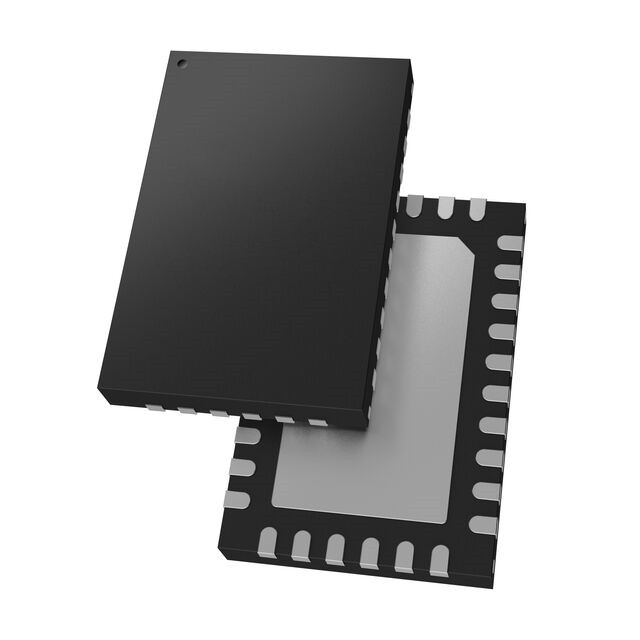

It adopts a 32-pin 4 mm x 6 mm LFCSP package

In addition, the AD4195-4BCPZ is suitable for a variety of application scenarios, including:

Industrial process control: PLC/DCS module

Temperature measurement

Pressure measurement

Medical and scientific instruments

Chromatography

Environmental monitoring

Electrical testing and measurement

Instruments and meters

Weighing equipment
