The LTC2323HUFD-12 is a dual-channel, 12-bit signed bit, 5Msps differential input ADC (analog-to-digital converter) with wide input common-mode range and low noise ‌‌. This device adopts a single 3.3V or 5V working power supply and has an 8VP-P differential input range, making it highly suitable for applications that require a wide dynamic range and high common-mode suppression.

Key Features

The LTC2323HUFD-12 device has the following main characteristics:

Throughput rate of 5Msps

±0.5LSB INL (typical value)

Guarantee 12 digits with no missed or missing codes

8VP-P differential input and wide input common mode range

The typical SNR value at fIN = 2kHz is 73dB

The typical THD value at fIN = 2kHz is -85 dB

Ensure operation at 125°C

Single 3.3V or 5V power supply

Low drift (maximum value of 20ppm/°C) 2.048V or 4.096V internal reference

1.8V to 2.5V I/O voltage

CMOS or LVDS SPI-compatible serial I/O

Power dissipation: 38mW per channel (typical value)

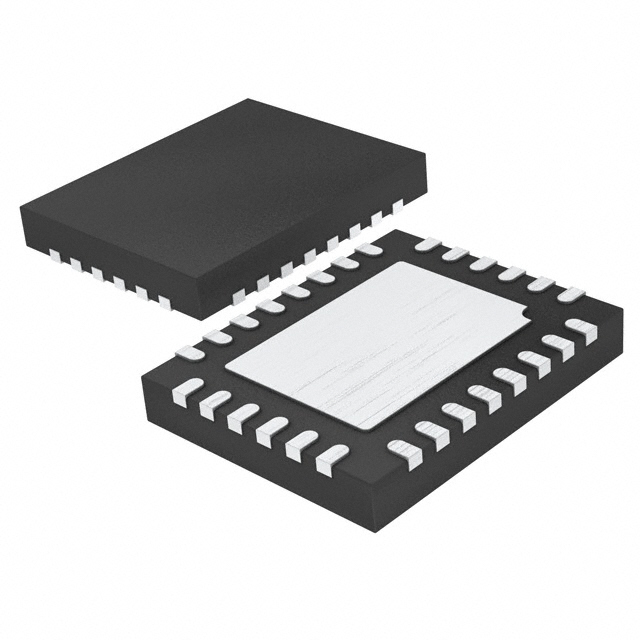

Small form factor 28-pin (4mm x 5mm) QFN package

In addition, the LTC2323HUFD-12 analog-to-digital converter is suitable for a wide range of applications that require high speed, high precision data conversion, such as industrial control, test and measurement, communication systems and instrumentation ‌. Its wide input common-mode range and low noise characteristics make it perform well in demanding applications.
