The LTC2323HUFD-16 is a low-noise, high-speed, dual-channel 16-bit successive approximation register (SAR) ADC with differential input and wide input common-mode range. The LTC2323HUFD-16 adopts a single 3.3V or 5V working power supply and has an 8VP-P differential input range, making it highly suitable for applications that require a wide dynamic range and high common-mode suppression. The LTC2323HUFD-16 achieves ±4LSB INL (typical value), no missed codes (in 16 bits), and 81dB SNR.

Basic parameters

The main parameters of LTC2323HUFD-16 include:

Number of digits: 16

Sampling rate (per second) : 5M

Input number: 2

Input type: Differential, individual pseudo-differential

Data interface: LVDS - Serial, Serial

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 2

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 3.13V - 3.47V, 5V

Voltage - Power supply, figures: 3.13V to 3.47V, 5V

Feature: Synchronous sampling

Operating temperature: -40°C to 125°C

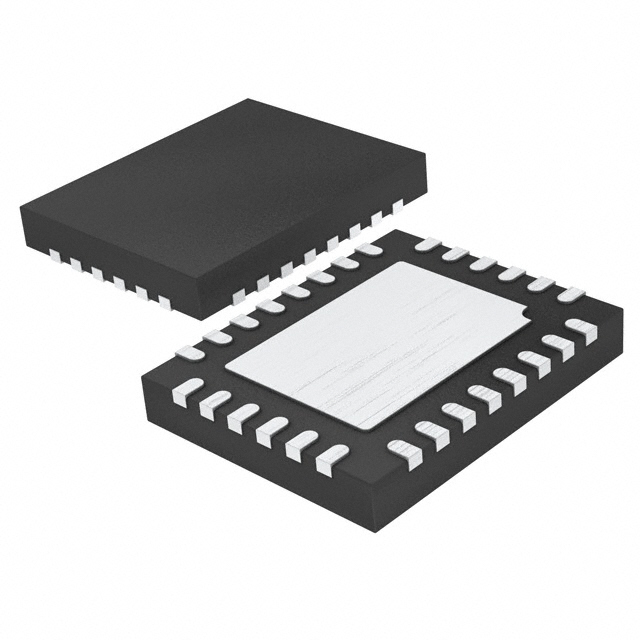

Package/Shell: 28-QFN

Installation type: Surface mount type

Furthermore, the LTC2323HUFD-16 also features a high-speed SPI-compatible serial interface that supports CMOS or LVDS. The high throughput rate of 5Msps per channel and the single-cycle latency feature make LTC2323-16 an ideal choice for numerous high-speed applications.

Its target applications include:

High-speed data acquisition system

Communication

Remote data acquisition

Imaging

Optical network

Automobile

Multiphase motor control
