The LTC2367CDE-16 is a 16-bit 500ksps pseudo-differential unipolar sequential approximation register (SAR) analog-to-digital converter (ADC) with low noise, low power consumption and high speed ‌. This device is powered by a 2.5V power supply, with an input range of 0V to VREF, and the VREF range is from 2.5V to 5.1V. In addition, the LTC2367CDE-16 has a power consumption of only 6.8mW, achieves a maximum of ±0.75LSB INL, has no missed code at 16 bits, and has a signal-to-noise ratio (SNR) of 94.7dB‌.

Main characteristics

The LTC2367CDE-16 device has the following main characteristics:

Throughput rate of 500ksps

±0.75LSB INL (maximum value)

Ensure 16 bits and no missed codes

Low power: 6.8mW (at 500ksps), 6.8μW (at 500sps)

At fIN = 2kHz, 94.7dB SNR (typical value)

At fIN = 2kHz, -119dB THD (typical value)

Ensure operation at 125°C

2.5V power supply

Pseudo-differential unipolar input range: 0V to VREF

VREF input range: 2.5V to 5.1V

No pipeline delay, no periodic delay

1.8V to 5V I/O voltage

Spi-compatible serial I/O with Daisy chain mode

Internal conversion clock

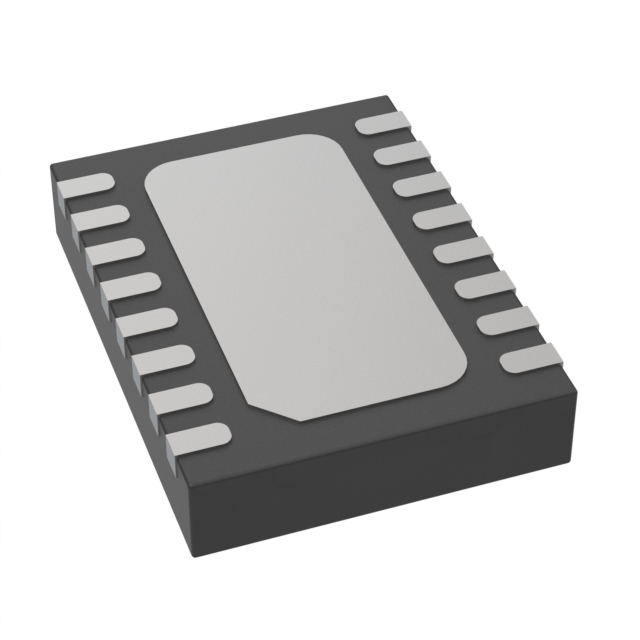

16-pin MSOP package and 4mm x 3mm DFN package

Application field

The LTC2367CDE-16 analog-to-digital converter is suitable for application scenarios that require high-precision and high-speed sampling, such as industrial automation, test measurement, and high-speed data acquisition systems, etc. Its low power consumption and high speed make it particularly suitable for portable devices and systems with strict power management requirements ‌.
