The LTC2500IDKD-32 is a low noise, low power, high performance 32-bit oversampling ADC with configurable digital filter ‌. This device is powered by a single 2.5V power supply and features a fully differential input range of up to ±VREF, with the VREF variation range from 2.5V to 5.1V. In addition, the LTC2500IDKD-32 supports wide common-mode range from 0V to VREF, simplifying analog signal conditioning requirements ‌.

1. Main features

The main features of LTC2500IDKD-32 include:

±0.5ppm INL (typical value)

The typical value of SNR at 1Msps is 104dB

The typical value of the dynamic range at 61sps is 148dB

Ensure 32 bits and no missed codes

Configurable digital filter with synchronization function

Relaxed requirements for anti-aliasing filters

Dual-output 32-bit SAR ADC

32-bit digital filtered low-noise output

24-bit differential + 7-bit common-mode 1Msps output and out-of-range detection function

Wide input common-mode range

Ensure operation at 85°C

1.8V to 5V SPI-compatible serial I/O

Low power: 24mW (at 1Msps)

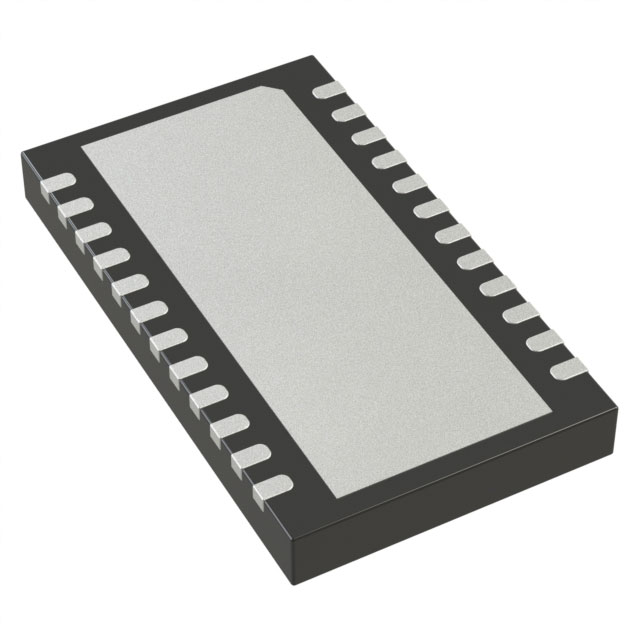

24-pin 7mm x 4mm DFN package

2. Application scenarios

The LTC2500IDKD-32 device is suitable for a variety of application scenarios, including:

Seismology

Energy exploration

Automated testing equipment

High-accuracy instrument
