The LTC2321HUFD-16 is a dual-channel, 16-bit, 2Msps differential input ADC with a wide input common-mode range.

1. Performance parameters

Number of digits: 16

Sampling rate (per second) : 2M

Input number: 2

Input type: Differential, individual pseudo-differential

Data interface: LVDS - Serial, Serial

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 2

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 3.13V - 3.47V, 5V

Voltage - Power supply, figures: 3.13V to 3.47V, 5V

Feature: Synchronous sampling

Operating temperature: -40°C to 125°C

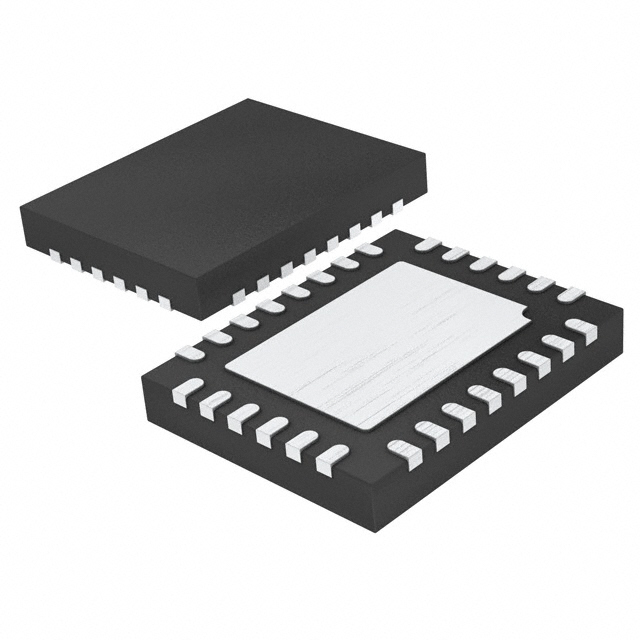

Package/Shell: 28-QFN

Installation type: Surface mount type

2. Introduction

The LTC2321HUFD-16 is a low-noise, high-speed, dual-channel 16-bit successive approximation register (SAR) ADC with differential input and wide input common-mode range. The LTC2321-16 adopts a single 3.3V or 5V working power supply and has an 8VP-P differential input range, making it highly suitable for applications that require a wide dynamic range and high common-mode suppression. The LTC2321HUFD-16 achieves ±4LSB INL (typical value), no missed codes (in 16 bits), and 81dB SNR.

3. Application fields

The LTC2321HUFD-16 device is suitable for various application scenarios that require high speed, high precision and wide dynamic range, such as communication, industrial control, test and measurement, etc. Its low noise and wide input common-mode range make it outstanding in applications that require high common-mode suppression ‌.
