The LTC2320HUKG-16 is a 16-bit, 1.5Msps per channel SAR ADC with 8 simultaneous sampling channels, supporting rail-to-rail input common-mode range ‌‌. The LTC2320HUKG-16 has a flexible analog front end that can accept fully differential, unipolar or bipolar analog input signals as well as any input signal. It is suitable for sampling input signals up to 750kHz Nyquist frequency, maintaining an 82dB signal-to-noise ratio (SNR) and a 102dB high common-mode rejection ratio (CMRR) ‌.

Technical specifications and performance parameters

The main specifications of LTC2320HUKG-16 include:

Number of digits: 16

Sampling rate (per second) : 1.5M

Input number: 8

Input type: Differential

Data interface: LVDS - Parallel, SPI

Configuration: S/H-MUX-ADC

Ratio -S /H:ADC: 2:1

Number of A/D converters: 4

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 3.13V - 3.47V, 5V

Voltage - Power supply, figures: 3.13V to 3.47V, 5V

Feature: Synchronous sampling

Operating temperature: -40°C to 125°C

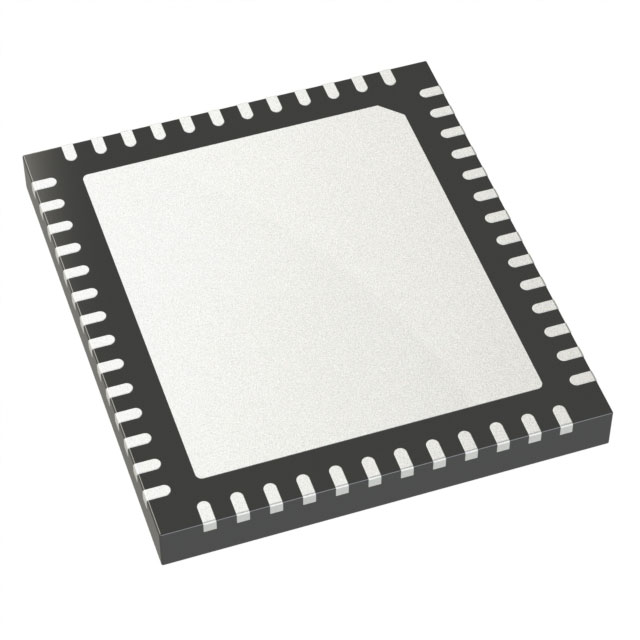

Package/Shell: 52-QFN

Installation type: Surface mount type

Application scenarios

The LTC2320HUKG-16 is suitable for a variety of high-speed and space-constrained applications, including:

High-speed data acquisition system

Communication

Optical network

Multiphase motor control
