The LTC2320CUKG-16 device is a low-noise, high-speed, 8-channel 16-bit sequential approximation register (SAR) ADC with differential input and wide input common-mode range. The LTC2320-16 adopts a single 3.3V or 5V working power supply and has an 8VP-P differential input range, making it highly suitable for applications that require a wide dynamic range and high common-mode suppression. This ADC achieves ±2LSB INL (typical value), no missed codes (at 16 bits), and 82dB SNR.

Main characteristics

The main features of LTC2320CUKG-16 include:

The throughput rate of each channel is 1.5Msps

Eight simultaneous sampling channels

Ensure 16 bits and no missed codes

8VP-P differential input and wide input common mode range

The typical SNR value at fIN = 500kHz is 82dB

The typical THD value at fIN = 500kHz is -90 dB

Ensure operation at 125°C

Single 3.3V or 5V power supply

Low drift (maximum value of 20ppm/°C) 2.048V or 4.096V internal reference

1.8V to 2.5V I/O voltage

CMOS or LVDS SPI-compatible serial I/O

The power consumption is 20mW per channel (typical value).

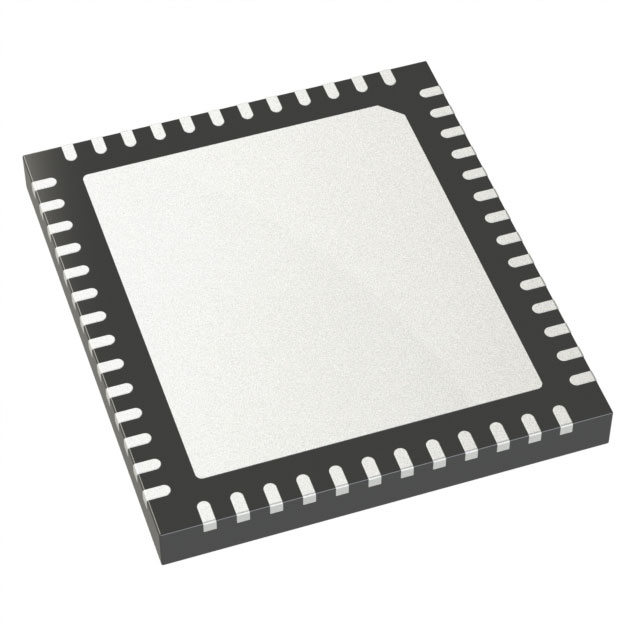

Small form factor 52-pin (7mm x 8mm) QFN package

Application field

The LTC2320CUKG-16 ADC is suitable for a variety of high-speed and space-constrained applications, including industrial, medical equipment, communication systems and battery-powered systems. Its high sampling rate and low power consumption make it excel in systems that require high precision and high speed data conversion ‌.
