The LTC2374CUH-16 is a low-noise, high-speed, 8-channel 16-bit successive approximation register (SAR) ADC. The LTC2374CUH-16 adopts a single 5V working power supply and features a highly configurable low-crosstalk 8-channel input multiplexer that supports fully differential, pseudo-differential unipolar and pseudo-differential bipolar analog input ranges.

Main characteristics

The features of the LTC2374CUH-16 analog-to-digital converter include:

1.6Msps throughput rate

16-bit resolution, no missed codes

An 8-channel multiplexer with an optional input range

Total difference (±4.096V)

Pseudo-differential unipole (0V to 4.096V)

Pseudo-differential bipolar (±2.048V)

INL: ±1LSB (maximum value)

SNR: The typical value at fIN = 1kHz is 96dB (full difference) / 93dB (pseudo-difference)

THD: The typical value at fIN = 1kHz is -114 dB

Programmable sorter

Optional digital gain compression

A single 5V power supply with an I/O voltage of 1.8V to 5V

Spi-compatible serial I/O

Built-in 2.048V reference and reference buffer

No pipeline delay, no periodic delay

Power dissipation: 55mW (typical value)

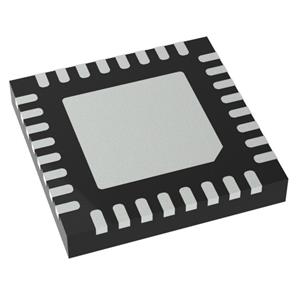

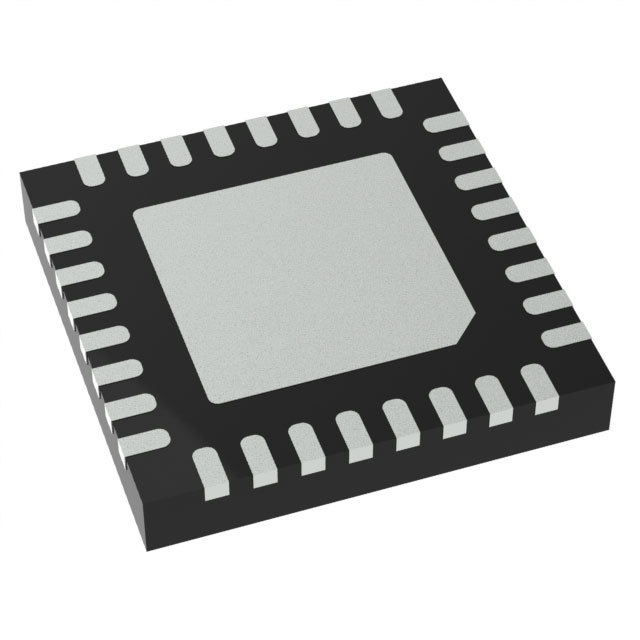

32-pin 5mm x 5mm QFN package

In addition, the LTC2374CUH-16 is suitable for applications that require high precision, high speed sampling, such as industrial control, data acquisition systems, test and measurement equipment, etc. ‌. Its high signal-to-noise ratio and low power consumption characteristics enable it to perform well in systems with strict requirements.
