The LTC2325CUKG-16 is a high performance 16-bit, 4-channel, 5Msps per channel analog-to-digital converter (ADC) for high precision and high speed applications ‌‌. This ADC has the following main characteristics:

The throughput rate per channel is 5Msps

Four simultaneous sampling channels

Ensure 16 bits and no missed codes

8VP-P differential input and wide input common mode range

The typical SNR value at fIN = 2.2MHz is 82dB

The typical THD value at fIN = 2.2Hz is -88 dB

Ensure operation at 125°C

Single 3.3V or 5V power supply

Low drift (maximum value of 20ppm/°C) 2.048V or 4.096V internal reference

1.8V to 2.5V I/O voltage

CMOS or LVDS SPI-compatible serial I/O

Power dissipation: 40mW per channel (typical value)

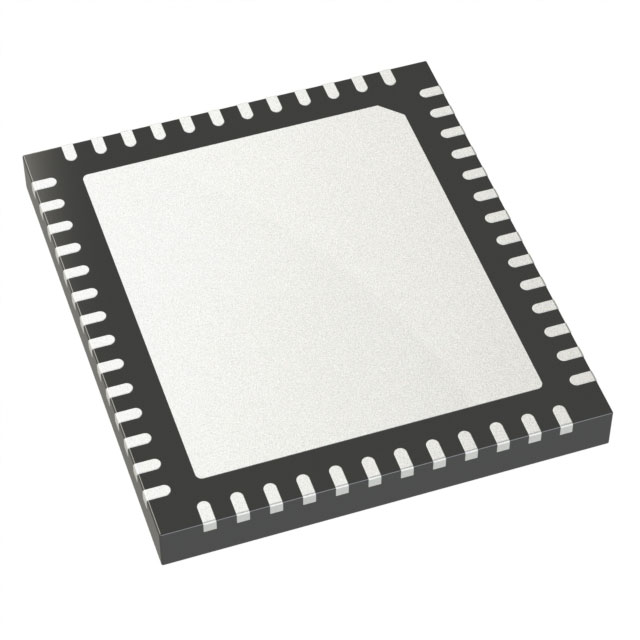

Small form factor 52-pin (7mm x 8mm) QFN package

Furthermore, the LTC2325CUKG-16 also features a high-speed SPI-compatible serial interface that supports CMOS or LVDS. The high throughput rate of 5Msps per channel and the single-cycle delay characteristics make the LTC2325CUKG-16 an ideal choice for numerous high-speed applications.

Application scenarios

The LTC2325CUKG-16 is applicable to various application scenarios that require high-precision and high-speed sampling, including but not limited to:

Industrial Control ‌ : Achieving high-precision data acquisition in industrial automation and process control.

Medical devices ‌ : For the precise acquisition and processing of biological signals in medical devices.

Scientific testing ‌ : For high-precision testing and data analysis in the scientific field.

Communication system ‌ : Implement high-speed data sampling and processing in the communication system.
