The Amphenol 10165431-110000LF is a compact 0.50 mm pitch BergStak® board-to-board connector with a mating height of 7 mm and an anti-skew plastic design that prevents terminal damage during insertion. The double row 0.5 mm pitch saves PCB space and is ideal for high density applications in the consumer and industrial markets.

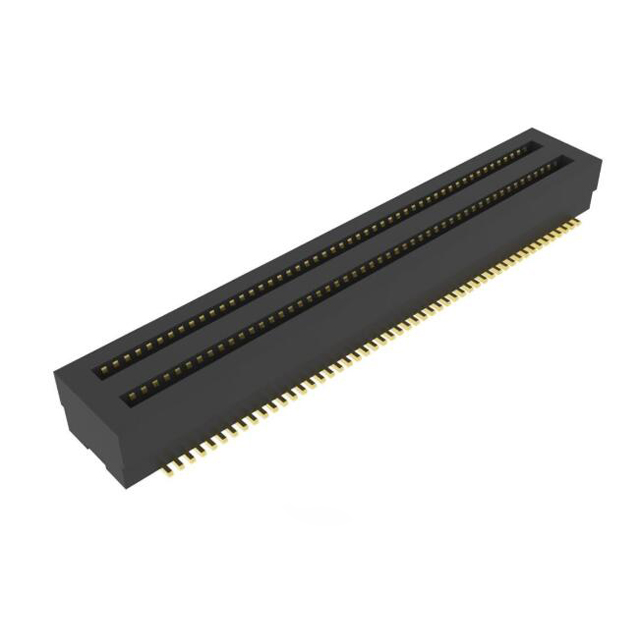

10165431-110000LF (Board-to-Board Connector): Bergstak® 0.50 mm Receptacle, 100 Pos, 7 mm Mating Height

Product Details:

Model: 10165431-110000LF

Series: BergStak® 0.50 mm Board-to-Board Connector

Product: Receptacle

Number of Positions: 100 Position

Pitch: 0.5 mm (0.02 in)

Number of Rows: 2 Row

Termination Type: Solder

Mounting Angle: Vertical

Stack height: 3 mm

Current rating: 500 mA

Voltage rating: 50 VAC

Maximum data rate: 2 Gbps

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 105 °C

Insulation resistance: 500 MOhms

BergStak® 0.5mm mm board-to-board connectors are available in two options: the pin option for enhanced board grip ensures higher retention force, while the locating post option simplifies manual assembly. Both options can be realised in the same connector. Available in stacking height options of 3-6 mm (in 0.5 mm increments), the connectors also feature 10-60 positions (in 10-position increments).
