Service Telephone:86-755-83294757
Trade Name:Board To Board Connectors
Brand:Amphenol
Particular Year:25+
Package:90POS
Delivery Date:New and Original
Stock: 3000pcs

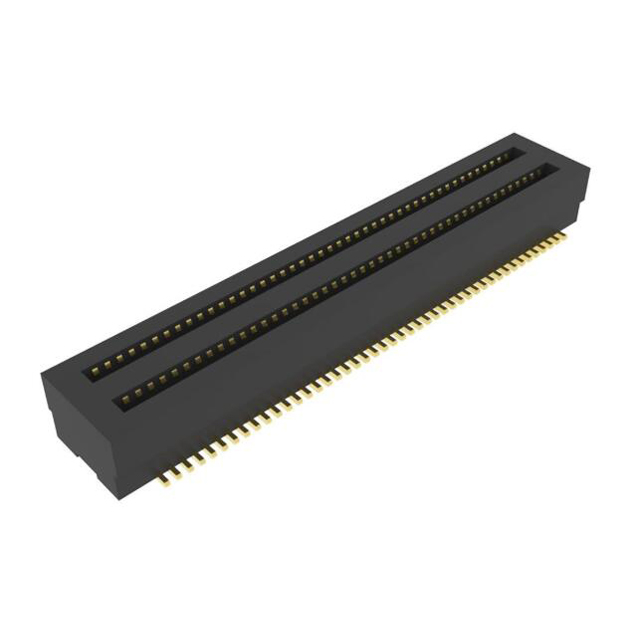

10165431-109000LF: 90POS, Bergstak® 0.50 mm Receptacle, 7 mm Mating Height
Amphenol BergStak® 0.50 mm Board-to-Board Connector (Model: 10165431-109000LF) Product Details:
# of contacts: 90
Current Rating: 0.5A
Durability (mating cycles): 50
Mating height: 7.00 mm (0.276 in)
Contact material: copper alloy
Housing material: LCP
Pitch: 0.50 mm (0.020 in)
Resistance (contact): 60mΩ max
Resistance (insulation): 500MΩ minimum
Rated voltage: 30 V AC
Operating temperature range: -40°C to +105°C
10165431-109000LF (BergStak® 0.50 mm Board-to-Board Connectors) Product Features:
Size range of 10-60 digits (in 10 digit increments)
3-6 mm stack height (in 0.5 mm increments)
Vertical to vertical mating configuration
Ideal for parallel board stacking applications
Dual row 0.5 mm pitch saves space on printed circuit boards
High density applications
Anti-skew plugging plastic
Ensures terminals are not damaged when plugged in
High flame retardant rating
PCB positioning post options
