Amphenol BergStak® 0.5mm mm board-to-board connectors are a comprehensive and versatile solution. The double row 0.5 mm pitch saves PCB space and features an anti-skew plastic design to prevent terminal damage during insertion. Ideal for high density applications in the consumer and industrial markets.

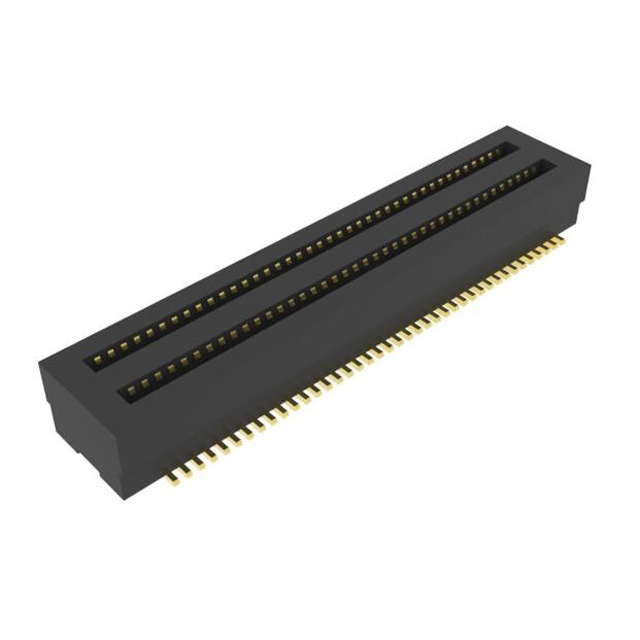

10165431-108000LF: BergStak® 0.50mm Board-to-Board Connector - Bergstak® 0.50mm Receptacle 80 Pos, 7mm Mating Height

Model: 10165431-108000LF

Package: 80POS

Type: BergStak® 0.5mm mm Board-to-Board Connector

# of contacts: 80

Current Rating: 0.5A

Durability (mating cycles): 50

Mating height: 7.00 mm (0.276 in)

Contact Material: Copper Alloy

Housing material: LCP

Pitch: 0.50 mm (0.020 in)

Resistance (contact): 60mΩ max

Resistance (insulation): 500MΩ minimum

Soldering process: surface mount

Rated voltage: 30V AC

Operating temperature range: -40°C to +105°C
