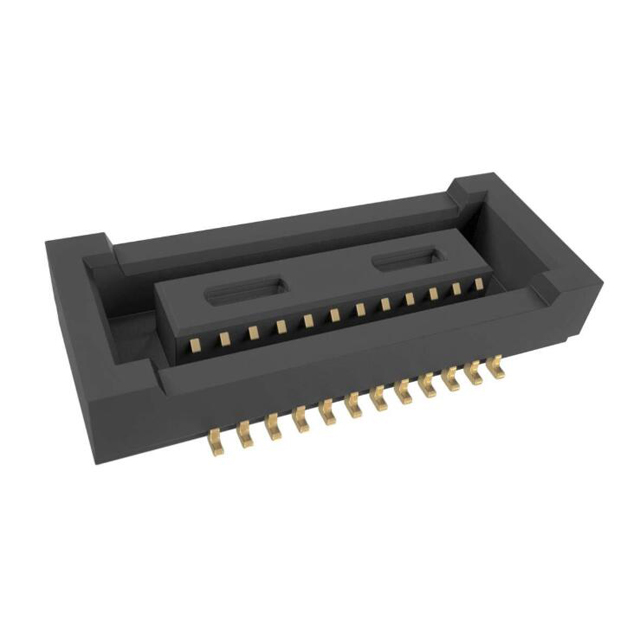

10164227-0241A1RLF: 24POS, BergStak® 0.40 mm Board-to-Board Connector, 1.5 mm Stack Height

Basic Information:

Model: 10164227-0241A1RLF

Series: BergStak® 0.40 mm

Package: 24POS

Type: Board-to-Board Connector

Product: Receptacle

Number of Positions: 24 Position

Pitch: 0.4 mm (0.016 in)

Number of Rows: 2 Row

Termination Type: Solder

Mounting Angle: Vertical

Stack height: 1.5 mm

Current rating: 300 mA

Voltage rating: 30 V

Maximum data rate: 16 Gbps

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

Amphenol (10164227-0241A1RLF) BergStak® 0.40 mm High Speed Board-to-Board Connectors (Product Overview):

The Amphenol 10164227-0241A1RLF is a compact BergStak® board-to-board connector with 0.40 mm pitch, 1.5 mm stack height, contact locking, and vibration-damping ribs on the housing, making it ideal for high-vibration applications. The device supports signal rates up to 16 Gb/s and can be soldered to FPCs for highly flexible board-to-board connections.
