The Amphenol 10164227-0205A1RLF is a compact BergStak® board-to-board connector with a pitch of 0.40 mm, a stack height of 3.5 mm, contact locking, and vibration-damping ribs on the housing, making it ideal for high-vibration applications. The device supports signal rates up to 16Gb/s and can be soldered to FPCs for highly flexible board-to-board connections.

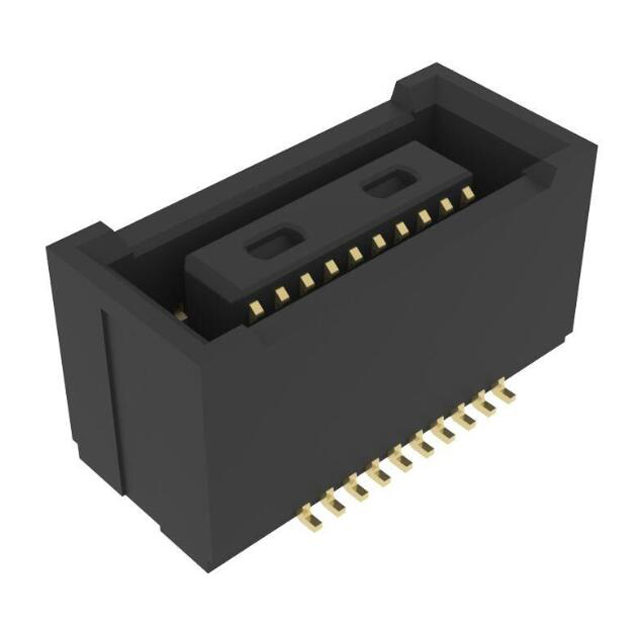

10164227-0205A1RLF (Board-to-Board Connector): 20POS, BergStak® 0.40 mm Receptacle, 3.5 mm Stack Height

Product Details:

Model: 10164227-0205A1RLF

Series: BergStak® 0.40 mm Board-to-Board Connector

Number of Contacts (POS): 20 positions

Pitch: 0.4 mm (0.016 in)

Number of Rows: 2 Row

Termination Type: Solder

Mounting Angle: Straight

Stacking height: 3.5 mm

Voltage rating: 30 VAC

Minimum Operating Temperature: - 40 °C

Maximum operating temperature: + 125 °C

10164227-0205A1RLF Product Features:

Contact spacing of 0.40 mm, 20 positions, can effectively save space

Provides 3.5 mm stacking height

Contact locking function greatly improves mating reliability

Contact locking feature greatly improves reliability

USCAR-2 V2 compliant

High speed performance: 16Gb/s (PCIe®/USB)

Supports auto-alignment for FPC-to-board applications
