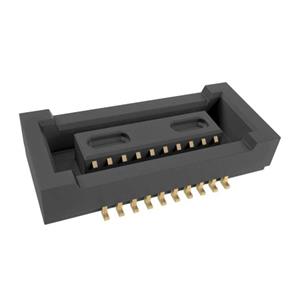

10164227-0201A1RLF: 20POS, High Speed BergStak® 0.40mm Board-to-Board Connector, 1.5mm Stack Height

Product details for Amphenol (Model No. 10164227-0201A1RLF) BergStak® 0.40 mm Board-to-Board Connectors:

Product: Receptacle

Number of Positions: 20 Position

Pitch: 0.4 mm (0.016 in)

Number of Rows: 2 Row

Termination Type: Solder

Mounting Angle: Vertical

Stack height: 1.5 mm

Current rating: 300 mA

Voltage rating: 30 V

Data rate: 16 Gb/s

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

Insulation resistance: 50 MOhms

10164227-0201A1RLF (BergStak® 0.40mm Board-to-Board Connector) Product Features:

0.40 mm micro-pitch

Multiple stacking height and position combinations available

Contact locking feature

Vibration dampening ribs

Features misalignment

Provides high speed performance of 16Gb/s (PCIe®/USB)

Additional fixed taps on plugs
