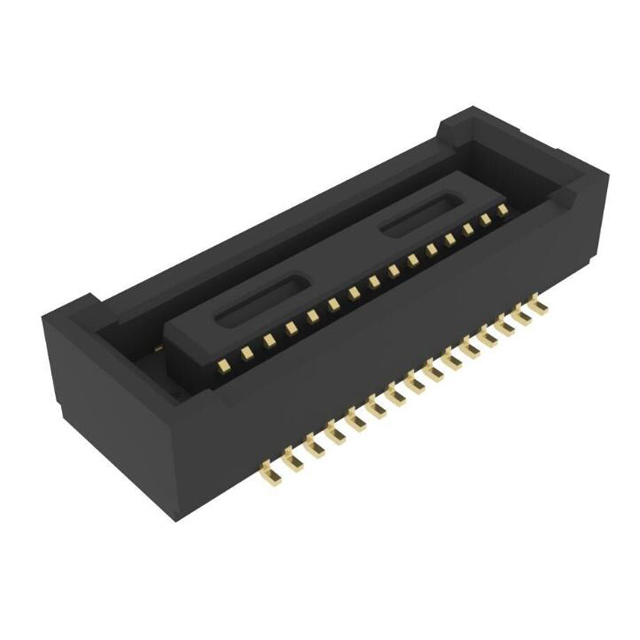

Model No.: 10164227-0306A1RLF

Series: BergStak® 0.40 mm Board-to-Board Connectors

Number of contacts (POS): 30 positions

Pitch (Pitch): 4.00mm, compact design for medium to high density layouts.

Current carrying capacity:

Rated current: 0.3A per pin

Rated voltage: 30V AC

Resistance (contact): 90mΩ max.

Resistance (insulation): 50MΩ minimum

Operating temperature: -40°C to +125°C for harsh environments.

Durability (mating cycle): 30

Mating height: 2.00 mm (0.079 in)

1. Product Details

The Amphenol 10164227-0306A1RLF is a compact BergStak® board-to-board connector with 0.40 mm pitch, 2.0 mm stack height, contact locking, and vibration-damping ribs on the housing, making it ideal for high-vibration applications. The device supports signal rates up to 16Gb/s and can be soldered to FPCs for highly flexible board-to-board connections.

2. Key Features

Space-saving contact pitch of 0.40 mm with up to 10 to 100 positions

Available in 1.5 mm and 4.0 mm stack heights

Contact locking function greatly improves mating reliability

Contact locking feature greatly improves reliability

USCAR-2 V2 compliant

High-speed performance: 16Gb/s (PCIe®/USB)

Supports auto-alignment for FPC-to-board applications
