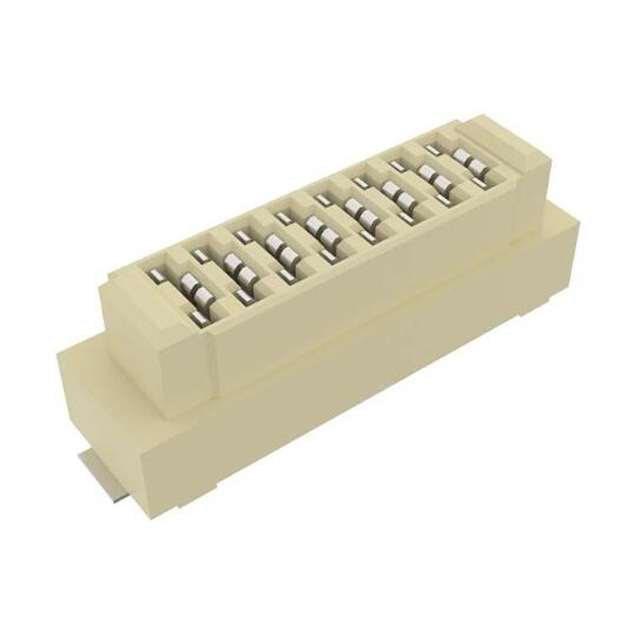

10159561-800221RLF (Board-to-Board Connector): 8POS, PowerStak® 2.00mm Vertical Receptacle

Below are product details for connector 10159561-800221RLF:

Model: 10159561-800221RLF

Package: 8POS

Type: Board to Board Connector

# of power contacts: 8

# of signal contacts: 0

Rated current: 20A

Durability (mating cycles): 200

Contact Material: Copper Alloy

Housing material: LCP

Plated contact area: 0.2μm (8μin) nickel-plated on gold background

Resistance (contact): max. 1mΩ (initial), max. 2mΩ (after test)

Rated voltage: 100V DC

Operating temperature range: -40°C to +125°C

Amphenol (10159561-800221RLF) PowerStak® 2.00 mm Power Board-to-Board Connectors (Product Features)

High current-carrying capacity in a miniaturised design

Current-carrying capacity of up to 20A per power terminal

Available with 2 to 10 blade power terminals with 2.0 mm spacing

Available with 6 to 140 signal pins with 0.8 mm spacing

Reliable 4-contact power contact design

Signal speed performance up to 12Gb/s

5 mm to 20 mm stack height (in 1.0 mm increments)

Supports auto-alignment for blind insertion

Compliant with USCAR-2 V2 shock and vibration requirements
