Model No.: 10159561-800121RLF

Series: PowerStak® 2.00mm Board-to-Board Connector

Number of Contacts (POS): 8 positions

Pitch (Pitch): 2.00mm, compact design for medium to high density layouts.

Current carrying capacity:

Rated current: 20A

Rated voltage: 100V DC

Contact resistance: 1mΩ max (initial), 2mΩ max (after test)

Operating temperature: -40°C to +125°C for harsh environments.

Durability (mating cycle): 200

1. Product Details

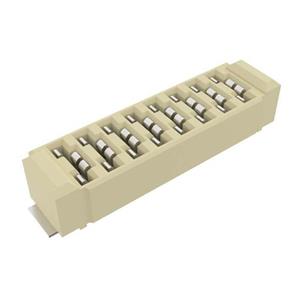

The Amphenol 10159561-800121RLF is an 8-position vertical board-to-board connector in the PowerStak® family designed for applications requiring high current transfer and compact space layouts. Its vertical mating orientation allows PCBs to be connected in a vertical stack, significantly saving horizontal space inside the device, while optimising the terminal and housing structure to ensure stable performance in harsh environments such as high temperature and vibration.

2.Key Features

Miniaturised design with high current-carrying capacity

Current-carrying capacity of up to 20A per power terminal

Provide 2 to 10 blade power terminals with 2.0 mm pitch

Provides 6 to 140 signal pins with 0.8 mm spacing

Reliable 4-contact power contact design

Signal speed performance up to 12Gb/s

5 mm to 20 mm stack height (in 1.0 mm increments)

Supports auto-alignment for blind insertion

Compliant with USCAR-2 V2 shock and vibration requirements
