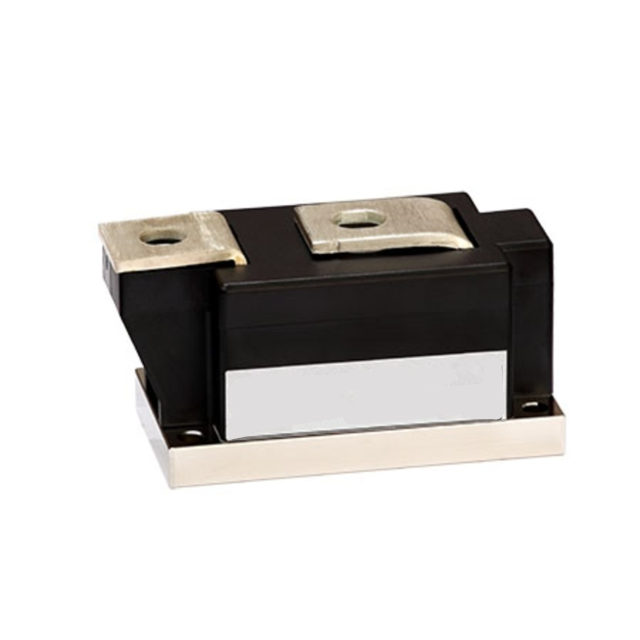

The DZ540N26K is a 50mm single rectifier diode module with a voltage of 2600V and a current capacity of 540A. This module adopts pressure contact technology and features an electrically insulated substrate, making it suitable for high-reliability industrial standard packaging.

Basic information

Model: DZ540N26K

Type: Diode module

Technology: Standard

Voltage - DC reverse (Vr) (maximum value) : 2600 V

Current - Average rectification (Io) : 732A

Voltage - forward (Vf) at different IFs: 1.64 V @ 2200 A

Speed: Standard recovery >500ns, > 200mA (Io)

Current - reverse leakage at different VRS: 40 mA @ 2600 V

Capacitance at different Vr and F times: -

Installation type: Base installation

Package/Shell: Module

Operating temperature: -40°C to 150°C

Application field

The DZ540N26K module is widely used in the following fields:

Motor control and drive ‌

Wind power system ‌

Traction system ‌

Commercial, construction and agricultural vehicles (CAVs) ‌

Uninterruptible power supply (UPS) ‌‌
