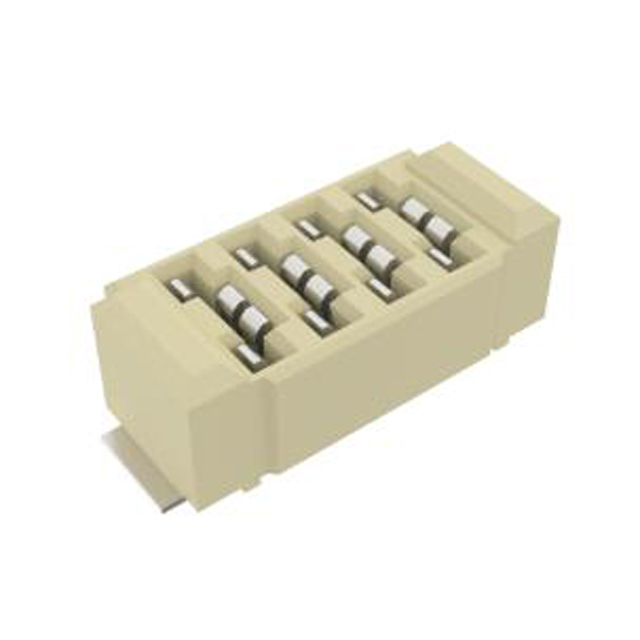

10159561-400121RLF: 4POS, PowerStak® 2.00mm Board-to-Board Connector

Model: 10159561-400121RLF

Package: 4POS

Type: Board-to-Board Connector

Overview: PowerStak® Vertical Receptacle 4P

PowerStak® is a power supply board-to-board connector offering high signal and current densities and various stacking height options.

- High Current Carrying Capacity in a Miniaturised Design

- Current carrying capacity up to 20A per power terminal

- Available with 2 to 10 blade power terminals with 2.0 mm spacing

- Available with 6 to 140 signal pins at 0.8 mm spacing

- Reliable 4-contact power contact design

- Signal speed performance up to 12Gb/s

- 5 mm to 20 mm stack height (in 1.0 mm increments)

- Supports auto-alignment for blind insertion

- Meets USCAR-2 V2 shock and vibration requirements

10159561-400121RLF Specifications:

Series: PowerStak®

Connector Type: Receptacle

Style: Board to Board

Number of Pin Positions: 4

Number of Positions Loaded: All

Pitch - Mating: 0.079’ (2.00mm)

Number of Rows: 1

Mounting Type: Surface Mount

End Connections: Solder

Fastening Type: Push-Pull

Contact Finish - Mating: Gold, GXT™

Contact Finish Thickness - Mating: 8.00µin (.203µm)

Insulation Colour: Natural

Insulation Height: 0.169’ (4.30mm)

Operating Temperature: -55°C ~ 125°C

Contact Finish - Post: Gold Plated

Contact Stack Height: 5mm, 6mm, 7mm, 8mm

Rated Current (Amps): 25A

Rated Voltage: 100VDC
